(35.724.01[02]) - BUCKET/BOOM/OPTIONAL SPOOLS 2, 3, 4 SPOOL VALVE 821F

Запчасти Case 821F (35.724.01[02]) - BUCKET/BOOM/OPTIONAL SPOOLS 2, 3, 4 SPOOL VALVE 821F (35) - HYDRAULIC SYSTEMS

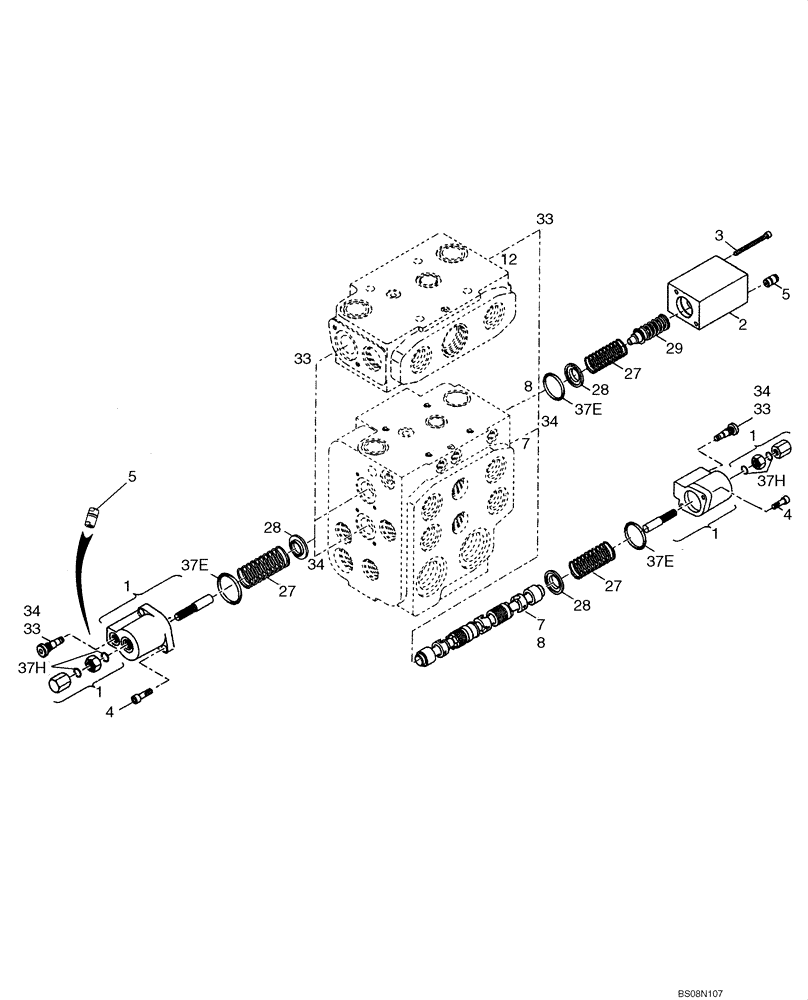

Схема запчастей Case 821F - (35.724.01[02]) - BUCKET/BOOM/OPTIONAL SPOOLS 2, 3, 4 SPOOL VALVE 821F (35) - HYDRAULIC SYSTEMS
8
2
37e
37e
29
34
28
33
7
8
5
1
1
28
37e
34
27
34
37h
4
5
34
28
27
33
27
1
7
12
4
33
3
1
33
37h
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

M6-20 TWO, THREE, AND FOUR SPOOL VALVE;Z-BAR; IF USED

1шт.

87539283

VALVE

Four Spool; Incl. 1 - 37; Also Includes Parts On 35.724.01(01), 35.724.02(01), 35.724.02(02)

1шт.

87539282

VALVE

Three Spool; Incl. 1 - 37; Also Includes Parts On 35.724.01(01), 35.724.02(01), 35.724.02(02

1шт.

87539278

VALVE

Two Spool; Incl. 1 - 37; Also Includes Parts On 35.724.01(01), 35.724.02(01), 35.724.02(02

1шт.

1

8602890

COVER

Component Parts Not Serviced Separately

7шт.

2

87311762

COVER

Component Parts Not Serviced Separately

1шт.

3

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket; M6 x 105

2шт.

4

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

14шт.

5

8604578

CHECK VALVE

1-2шт.

7

87347209

SPOOL

Lift

1шт.

8

87347210

SPOOL

Tilt

3шт.

27

8602917

SPRING

8шт.

28

8602918

RETAINER

Spring

8шт.

29

87311768

SPRING

1шт.

33

8602924

CARTRIDGE

M12 x 1,5

5шт.

34

87311766

PLUG

M12 x 1,5

2шт.

37

8602927

SEAL KIT

For Control Block And Valve Section

1шт.

37a

NSS

NOT SOLD SEPARAT

O-Ring; 7.5 x 1.78

2шт.

37b

NSS

NOT SOLD SEPARAT

O-Ring;18 x 2.5

2шт.

37c

NSS

NOT SOLD SEPARAT

O-Ring; 25 x 3.53

2шт.

37d

NSS

NOT SOLD SEPARAT

O-Ring; 32.92 x 3.53

4шт.

37e

NSS

NOT SOLD SEPARAT

O-Ring; 40.94 x 2.62

6шт.

37f

NSS

NOT SOLD SEPARAT

O-Ring; 28.24 x 2.62

1шт.

37g

NSS

NOT SOLD SEPARAT

O-Ring; 23.47 x 2.62

2шт.

37h

NSS

NOT SOLD SEPARAT

O-Ring; 15.54 x 2.62

10шт.
