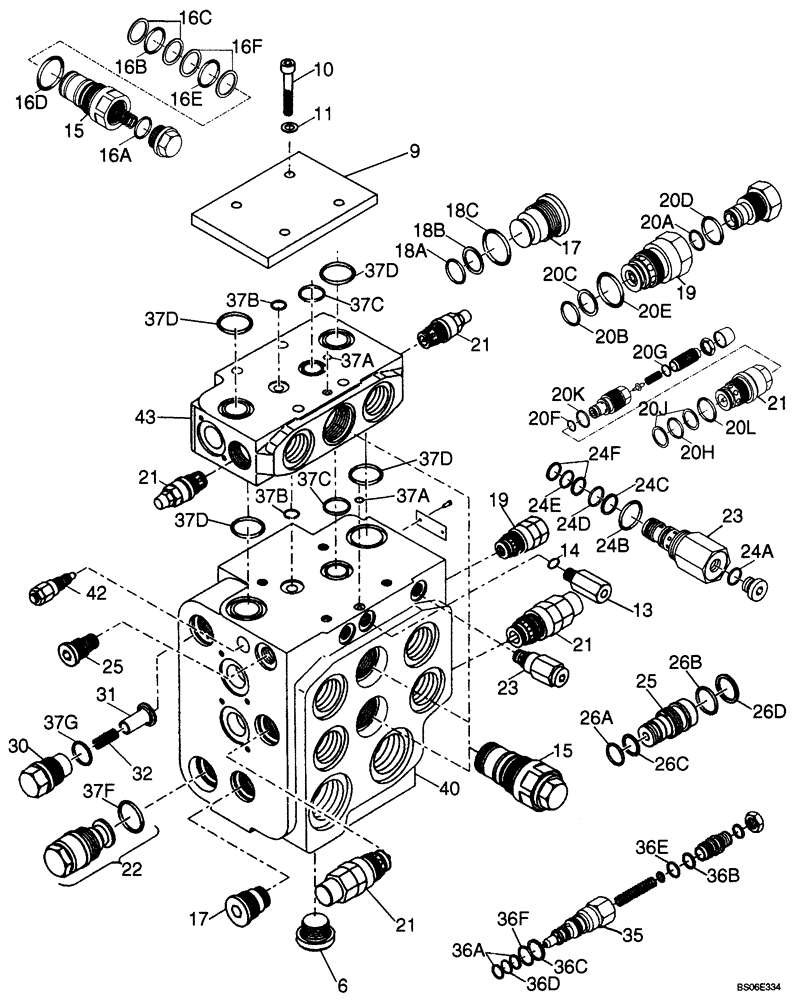

Запчасти Case 821F (35.724.01[01]) - VALVE ASSEMBLY, LOADER CONTROL - TWO, THREE, FOUR SPOOL 821F (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

M6-20 TWO, THREE, AND FOUR SPOOL VALVE;Z-BAR; IF USED

1шт.

87539283

VALVE

Four Spool; Incl.35.724.01(02); Also Includes Parts On Figure 35.724.02 (01), 35.724.02 (02)

1шт.

87539282

VALVE

Three Spool; Incl 35.724.01(02); Also Includes Parts On Figure 35.724.02 (01), 35.724.02 (02

1шт.

87539278

VALVE

Two Spool; Incl Incl.35.724.01(02); Also Includes Parts On Figure 35.724.02 (01), 35.724.02 (02

1шт.

6

8602893

SCREW,M33 x 2mm

M33 x 2; Locking

1шт.

9

8602896

COVER

Replaces 87311764

1шт.

10

8602932

STUD

M10 x 180; Not Illustrated; Use For Four Spool Valve Assembly

4шт.

10

8602928

HEX SOC SCREW,M10 x 110mm, Cl 10.9

Not Illustrated; Use For Three Spool Valve Assembly

4шт.

10

962-10035

HEX SOC SCREW,M10 x 35mm, Cl 10.9

Use For Two Spool Valve Assembly

4шт.

11

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

13

8602899

HYDRAULIC VALVE

1шт.

14

87311765

O-RING,1.78mm Thk x 15.6mm ID, 80 Duro

15.6 x 1.78

1шт.

15

8602900

PILOT VALVE

Pilot Relief And Anti-Cavitation Combined

2-4шт.

16

8602901

SEAL KIT

For Ref 15

1шт.

16a

NSS

NOT SOLD SEPARAT

O-Ring; 26.64 x 2.62

1шт.

16b

NSS

NOT SOLD SEPARAT

O-Ring; 27.0 x3.0

1шт.

16c

NSS

NOT SOLD SEPARAT

Thrust Ring; 25.5/30.7 x 0.8

2шт.

16d

NSS

NOT SOLD SEPARAT

O-Ring; 34.95 x 2.62

1шт.

16e

NSS

NOT SOLD SEPARAT

O-Ring; 29.8 x 2.62

1шт.

16f

NSS

NOT SOLD SEPARAT

Thrust Ring; 28.2/32.5 x 0.7

2шт.

17

8602902

LOCK SCREW

1шт.

18

8602903

SEAL KIT

For Ref 17

1шт.

18a

NSS

NOT SOLD SEPARAT

O-Ring; 17.12 x 2.62

1шт.

18b

NSS

NOT SOLD SEPARAT

Thrust Ring; 15.6 x 20 x 1

1шт.

18c

NSS

NOT SOLD SEPARAT

O-Ring;23.4 x 2.62

1шт.

19

8602904

PILOT VALVE

Anti-Cavitation

1шт.

20

8602905

SEAL KIT

For Ref 19

1шт.

20a

NSS

NOT SOLD SEPARAT

Spool Seal

1шт.

20b

NSS

NOT SOLD SEPARAT

O-Ring;17.12 x 2.62

1шт.

20c

NSS

NOT SOLD SEPARAT

Thrust Ring;16.1/20.4 x 1

1шт.

20d

NSS

NOT SOLD SEPARAT

O-Ring; 18.72 x 2.62

1шт.

20e

NSS

NOT SOLD SEPARAT

O-Ring; 23.47 x 2.62

1шт.

REF

INSTRUCTION

20F - 20L For Ref 21

1шт.

20f

NSS

NOT SOLD SEPARAT

Spool Seal

1шт.

20g

NSS

NOT SOLD SEPARAT

O-Ring; 10.82 x 1.78

1шт.

20h

NSS

NOT SOLD SEPARAT

O-Ring; 21.89 x 2.62

1шт.

20j

NSS

NOT SOLD SEPARAT

Thrust Ring; 21.8 x 26 x 1

2шт.

20k

NSS

NOT SOLD SEPARAT

O-Ring; 20.35 x 1.78

1шт.

20l

NSS

NOT SOLD SEPARAT

O-Ring; 25.07 x 2.62

1шт.

21

8602906

HYDRAULIC VALVE

Anti-Cavitation Check

2-6шт.

22

8602912

HYDRAULIC VALVE

1шт.

23

8602913

HYDRAULIC VALVE

Flow Limiting

1шт.

24

8604592

SEAL KIT

For Ref 23

1шт.

24a

NSS

NOT SOLD SEPARAT

Profile Seal; M12 x 1.5

1шт.

24b

NSS

NOT SOLD SEPARAT

O-Ring; 18.77 x 1.78

1шт.

24c

NSS

NOT SOLD SEPARAT

Thrust Ring; 11.2 x 14 x 1

1шт.

24d

NSS

NOT SOLD SEPARAT

O-Ring; 12.42 x 1.78

1шт.

24e

NSS

NOT SOLD SEPARAT

O-Ring; 10.82 x 1.78

1шт.

24f

NSS

NOT SOLD SEPARAT

Thrust Ring; 10.2 x 13 x 1

2шт.

25

8602915

HYDRAULIC VALVE

Flow Limiting

1шт.

26

8602916

SEAL KIT

For Ref 25

1шт.

26a

NSS

NOT SOLD SEPARAT

O-Ring; 8.5 x 1.5

1шт.

26b

NSS

NOT SOLD SEPARAT

O-Ring; 10.82 x 1.78

1шт.

26c

NSS

NOT SOLD SEPARAT

Thrust Ring; 7.3 x 9.5 x 0.7

1шт.

26d

NSS

NOT SOLD SEPARAT

Thrust Ring; 11.56 x 1.35

1шт.

30

8602919

SCREW,Lock, M28 x 1 x 49mm

Locking; M28 x 1 x 49

1шт.

31

8602920

CONE

24-14 x 35

1шт.

32

8602921

SPRING

1шт.

35

8602925

VALVE PRESSURE RELIE

1шт.

36

8604590

SEAL KIT

For Ref 35 Or 42

1шт.

36a

NSS

NOT SOLD SEPARAT

Thrust Ring; 7.3 x 9.5 x 0.7

2шт.

36b

NSS

NOT SOLD SEPARAT

Thrust Ring;9.91 x 1.35

1шт.

36c

NSS

NOT SOLD SEPARAT

Thrust Ring; 11.56 x 1.35

1шт.

36d

NSS

NOT SOLD SEPARAT

O-Ring; 8.5 x 1.5

1шт.

36e

NSS

NOT SOLD SEPARAT

O-Ring; 9.25 x 1.78

1шт.

36f

NSS

NOT SOLD SEPARAT

O-Ring; 10.82 x 1.78

1шт.

37

8602927

SEAL KIT

For Control Block And Valve Section

1шт.

37a

NSS

NOT SOLD SEPARAT

O-Ring; 7.5 x 1.78

2шт.

37b

NSS

NOT SOLD SEPARAT

O-Ring;18 x 2.5

2шт.

37c

NSS

NOT SOLD SEPARAT

O-Ring; 25 x 3.53

2шт.

37d

NSS

NOT SOLD SEPARAT

O-Ring; 32.92 x 3.53

4шт.

37e

NSS

NOT SOLD SEPARAT

O-Ring; 40.94 x 2.62

6шт.

37f

NSS

NOT SOLD SEPARAT

O-Ring; 28.24 x 2.62

1шт.

37g

NSS

NOT SOLD SEPARAT

O-Ring; 23.47 x 2.62

2шт.

37h

NSS

NOT SOLD SEPARAT

O-Ring; 15.54 x 2.62

10шт.

40

NSS

NOT SOLD SEPARAT

Control Block

1шт.

41

829-1410

NUT,M10 x 1.5, Cl 10.9

Four Spool Valve Assembly; Not Illustrated

4шт.

42

8602925

VALVE PRESSURE RELIE

1шт.

43

NSS

NOT SOLD SEPARAT

Valve Section

1-2шт.
