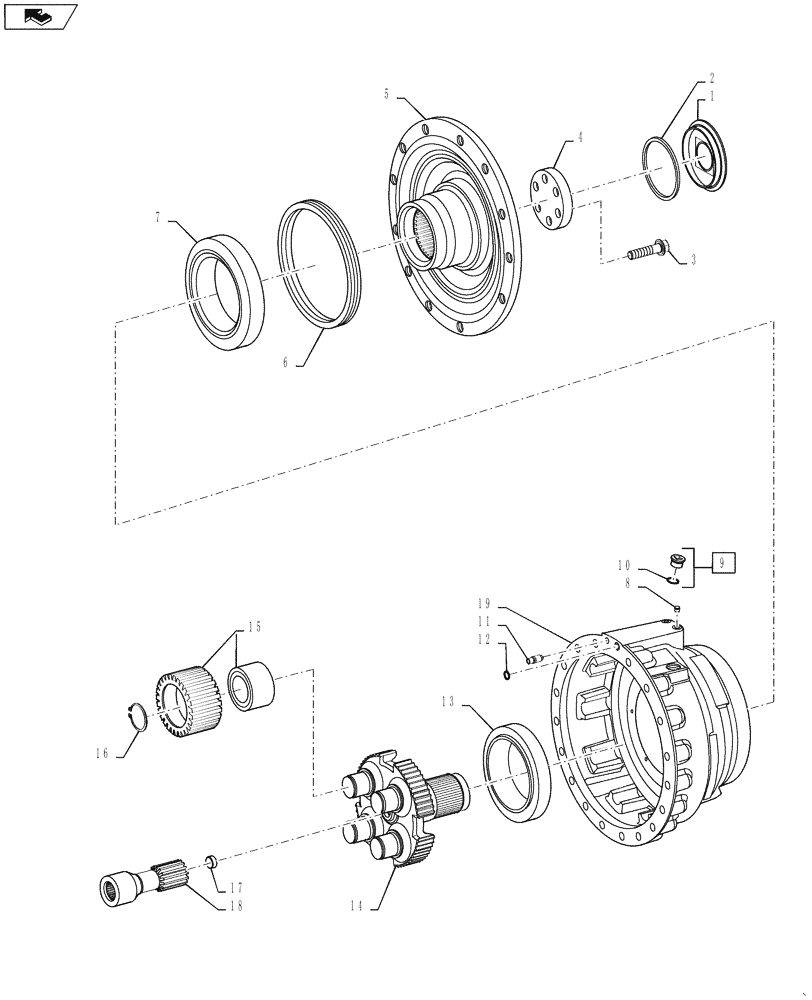

Запчасти Case 821F (27.106.04[01]) - REAR AXLE - PLANETARY HUB - 821 ONLY (27) - REAR AXLE SYSTEM

1

8603567

COVER

Wheel Flange Nut

1шт.

2

8603527

O-RING

1шт.

3

84329412

LOCK SCREW

6шт.

4

84329411

BEARING COVER

1шт.

5

47767459

SHAFT

Output

1шт.

6

87588611

SEAL

SEALRING Wheel End

1шт.

7

384969A1

TAPERED BEARING

Tappered

1шт.

8

8603673

PLUG

1шт.

9

84329418

HEX SOCKET PLUG

Incl. Ref. 10

1шт.

10

8603208

O-RING,2mm Thk x 21mm ID

21 x 2

1шт.

11

76088742

VALVE

1шт.

12

8603559

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

Wheel End Bolt

1шт.

13

47852581

SPH ROLLER BEARING

1шт.

14

84353895

PLANET CARRIER

3 Post

1шт.

15

84329416

PLANETARY GEAR

Planetary Gear

3шт.

16

87758638

RING

3шт.

17

47535286

BOLT,Stop, Hex

Stop Bolt

1шт.

18

84329413

GEAR SHAFT

Sun

1шт.

19

84329406

HOUSING

Brake

1шт.
