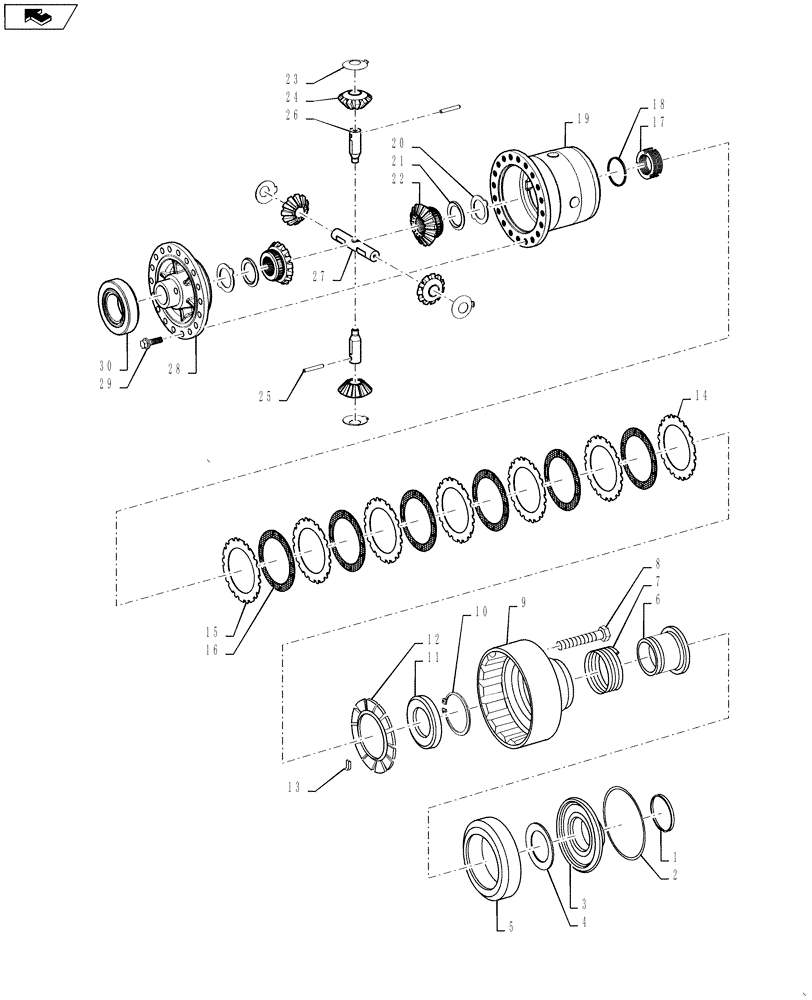

Запчасти Case 821F (25.106.02[03]) - FRONT AXLE DIFFERENTIAL - LOCKING 821/921 (25) - FRONT AXLE SYSTEM

1

84354338

O-RING

1шт.

2

84354125

O-RING

1шт.

3

84354122

PISTON

1шт.

4

84354339

ROLLER CAGE BEARING

1шт.

5

8603564

TAPERED BEARING

1шт.

6

84354340

SLEEVE

Sliding

1шт.

7

84354342

COMPRESSION SPRING

1шт.

8

84354121

HEX SOC SCREW

16шт.

9

84354120

CLUTCH HOUSING

1шт.

10

84354716

CIRCLIP

1шт.

11

84354718

PRESSURE RING

1шт.

12

84354119

CAGE

1шт.

13

84353934

LEVER

12шт.

14

84353933

PRESSURE RING

1шт.

15

84353928

CLUTCH DISC,1.2mm Thk

CLUTCH DISK Outer

10шт.

15

84353929

CLUTCH DISC,1.3mm Thk

CLUTCH DISK Outer

1шт.

15

84353930

CLUTCH DISC,1.4mm Thk

CLUTCH DISK Outer

1шт.

16

84353932

CLUTCH DISC

CLUTCH DISK Inner

10шт.

17

84354721

PINION CARRIER

821 ONLY

1шт.

17

84355105

CARRIER

Disc; 921 ONLY

1шт.

18

84354722

SNAP RING

1шт.

19

84353923

AXLE HOUSING

Differential; 821 ONLY

1шт.

19

84354791

HOUSING

Differential; 921 ONLY

1шт.

20

120017A1

THRUST WASHER

Thrust

2шт.

21

120019A1

THRUST WASHER

Thrust

2шт.

22

242160A1

PINION

Gear Axle; 821 ONLY

2шт.

22

384508A1

GEAR

Differential Side 16T; 921 ONLY

2шт.

23

84353924

THRUST WASHER

4шт.

24

120018A1

PINION

Differential Gear

4шт.

25

84353927

SLOTTED PIN

2шт.

26

84353926

DIFFERENTIAL

Axle Pinion

2шт.

27

84353925

DIFFERENTIAL

Axle Pinion

1шт.

28

84330534

PROTECTIVE COVER

Housing; 821 ONLY

1шт.

28

84354793

COVER

Housing; 921 ONLY

1шт.

29

184716A1

SCREW

20шт.

30

84330535

TAPERED BEARING

821 ONLY

1шт.

30

84354795

ROLLER BEARING

921 ONLY

1шт.
