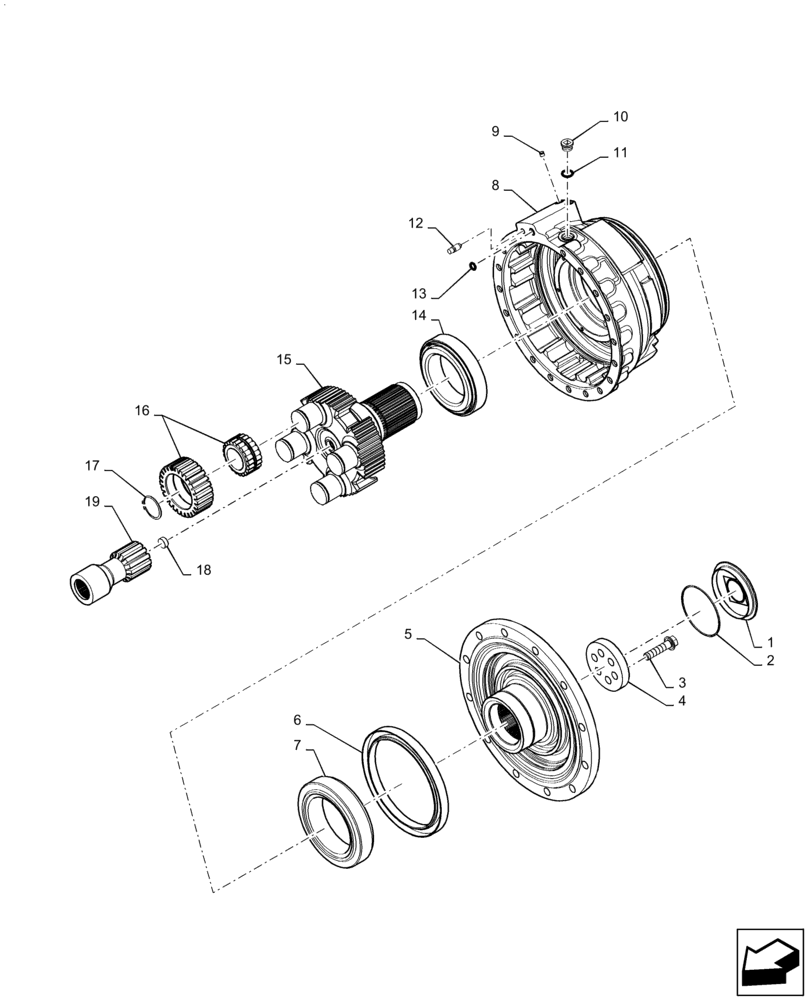

Запчасти Case 821F (25.106.01[01]) - FRONT AXLE PLANETARY HUB 821 ONLY (25) - FRONT AXLE SYSTEM

1

8603567

COVER

Wheel Flange Nut

1шт.

2

8603527

O-RING

1шт.

3

84329412

LOCK SCREW

6шт.

4

84329411

BEARING COVER

1шт.

5

84329410

SHAFT

Output; Limited Slip

1шт.

5

84354767

SHAFT

Output; Differential Lock

1шт.

6

84150634

SEAL

SEALRING Wheel End; Limited Slip

1шт.

6

84354761

SEAL

Ring Wheel End; Differential Lock

1шт.

7

384969A1

TAPERED BEARING

Tapered

1шт.

8

84329406

HOUSING

Brake; Limited Slip

1шт.

8

84354760

HOUSING

Brake; Differential Lock

1шт.

9

8603673

PLUG

1шт.

10

84329418

HEX SOCKET PLUG

Incl. Ref. 11

1шт.

11

8603208

O-RING,2mm Thk x 21mm ID

21 x 2

1шт.

12

76088742

VALVE

Vent

1шт.

13

8603559

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

Wheel End Bolt

1шт.

14

84329409

TAPERED BEARING

1шт.

15

84329417

PLANET CARRIER

1шт.

16

84329416

PLANETARY GEAR

Planet Gear

4шт.

17

87758638

RING

4шт.

18

8603571

PLUG

Stop; Bolt

1шт.

19

84329413

GEAR SHAFT

1шт.
