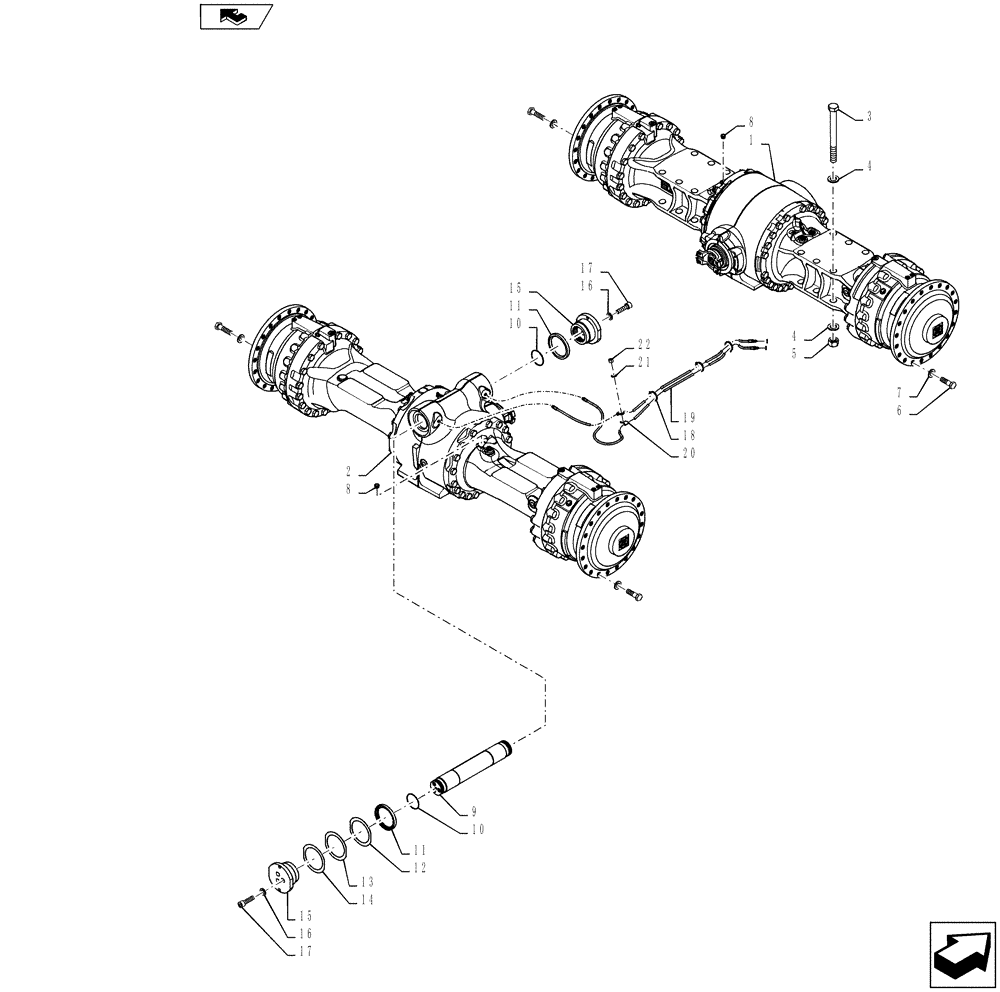

Запчасти Case 821F (25.100.02[02]) - AXLE FRONT AND REAR MOUNTING - LIMITED SLIP 821 ONLY (25) - FRONT AXLE SYSTEM

1

84240239

4WD AXLE ASSY

Front Axle

1шт.

1

84240239R

REMAN-AXLE DIF w/LTD

Reman Front Axle

1шт.

1

84240239C

CORE-AXLE DIFF w/LTD

Return Number

1шт.

2

84243137

4WD AXLE ASSY

Rear Axle

1шт.

2

84243137R

REMAN-REAR AXLE

Limited Slip

1шт.

2

84243137C

CORE-REAR AXLE

Return Number

1шт.

3

86541421

BOLT,Hex, M30 x 140mm, Cl 10.9

M30 X 140

8шт.

4

896-11030

WASHER,33mm ID x 56mm OD x 5mm Thk

16шт.

5

829-1430

NUT,M30, Cl 10

8шт.

6

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

64шт.

7

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

64шт.

8

8603201

BREATHER

Valve

2шт.

9

84215422

PIN,80.5mm OD x 503mm L

Rear Axle Pivot

1шт.

10

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2шт.

11

84215425

SEAL

2шт.

12

84215454

SHIM,122.5mm ID x 157mm OD x 1.5mm Thk

Rear Axle

1шт.

13

84215453

SHIM,122.5mm ID x 157mm OD x 1mm Thk

Rear Axle

1шт.

14

84215452

SHIM,122.5mm ID x 157mm OD x 0.5mm Thk

Rear Axle

1шт.

15

84215421

CAP

End; Pivot

2шт.

16

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

6шт.

17

863-20070

HEX SOC SCREW,M20 x 70mm, 12.9

6шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

19

84258672

HOSE ASSY.,4.83mm ID x 2174mm L

Grease Axle Bushing

2шт.

20

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
