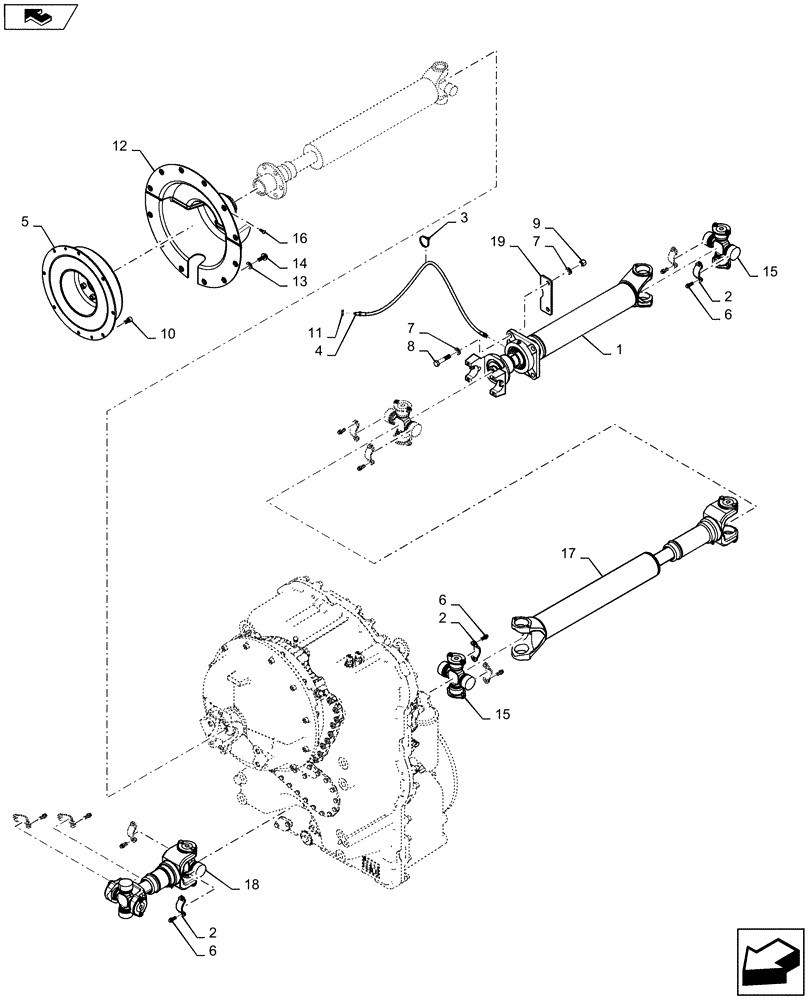

Запчасти Case 821F (21.300.03[02]) - DRIVE SHAFT INSTALL, 821F (21) - TRANSMISSION

1

84234395

DRIVE SHAFT

Front, Incl 20

1шт.

2

87439403

STRAP

Bearing Dana 1610

10шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

4

313683A1

FLEXIBLE HOSE

Grease

1шт.

5

8501111

COUPLING FLANGE

Flywheel to Driveshaft

1шт.

6

19-6247

BOLT,3/8" - 24 x 0.75", Grade 8

Capscrew, 12 pt

20шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

8

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

10

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

8шт.

11

F53473

LOCK NUT,1/8-27 NPSM

Hex, 1/8-27 NPSM

1шт.

12

87522101

COVER

Dust

1шт.

13

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

14

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

12шт.

15

87564081

U-JOINT SPIDER

3шт.

16

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

2шт.

17

84252889

DRIVE SHAFT

Center, Incl 20

1шт.

18

84252886

DRIVE SHAFT

Rear, Incl 20

1шт.

19

87567190

PLATE

Carrier Bearing

1шт.

20

345-49

SEALANT

Loctite 242, Not Illustrated

1шт.
