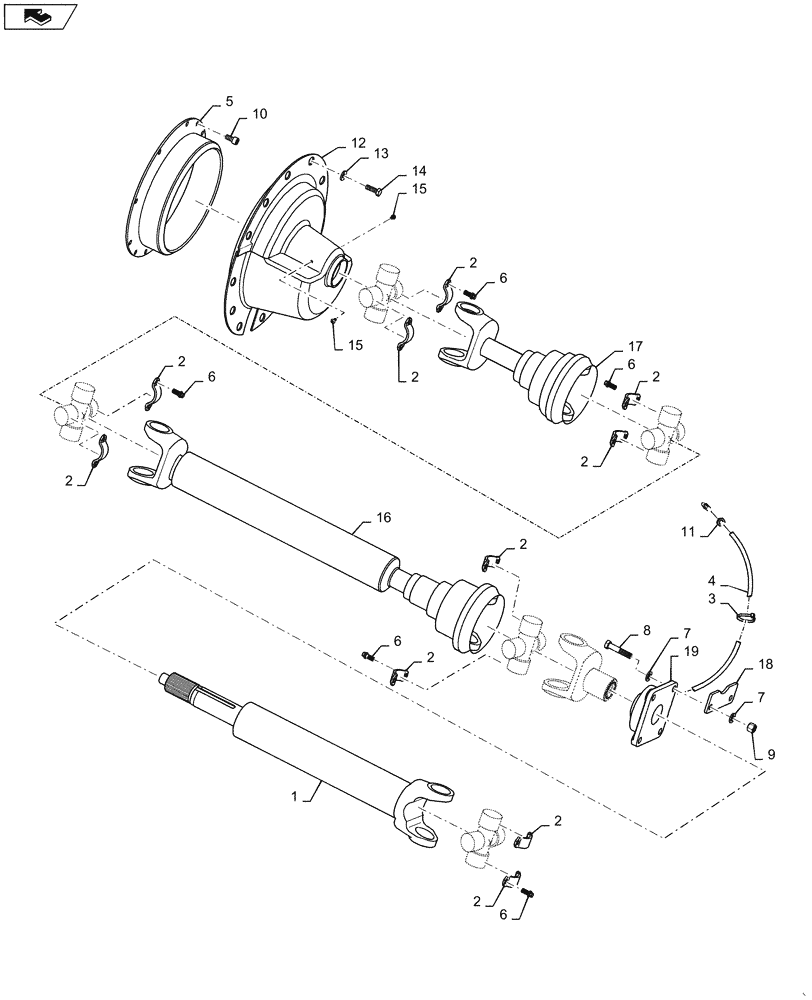

Запчасти Case 821F (21.300.02[01]) - DRIVE SHAFT INSTALLATION 821F (21) - TRANSMISSION

1

84234395

DRIVE SHAFT

Front, See Fig. 21.300.01

1шт.

2

87439403

STRAP

Bearing

10шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7-8" Nylon Black

1шт.

4

313683A1

FLEXIBLE HOSE

Grease

1шт.

5

8501111

COUPLING FLANGE

Flywheel To Driveshaft Used On 4 Speed Trans Only

1шт.

5

84403791

FLEXIBLE COUPLING

Flywheel To Driveshaft Used On 5 Speed Trans Only

1шт.

6

19-6247

BOLT,3/8" - 24 x 0.75", Grade 8

20шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

8

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

10

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

Used On 4 Speed Trans Only

8шт.

10

863-10075

HEX SOC SCREW,M10 x 75mm, 12.9

Used On 5 Speed Trans Only

8шт.

11

F53473

LOCK NUT,1/8-27 NPSM

1шт.

12

87522101

COVER

Dust On 4 Speed Trans Only

1шт.

12

84481529

COVER

Dust On 5 Speed Trans Only

1шт.

13

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

14

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

12шт.

15

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

2шт.

16

84252889

DRIVE SHAFT

Center, See Fig 21.300.01

1шт.

17

84252886

DRIVE SHAFT

Rear, See Fig 21.300.01

1шт.

18

87567190

PLATE

Bearing Carrier

1шт.

19

87371646

DRIVE SHAFT

To Engine Used On 4 Speed Trans Only

1шт.

19

84428767

DRIVE SHAFT

To Engine Used On 5 Speed Trans Only

1шт.

20

L106070

FLANGED BEARING

1шт.
