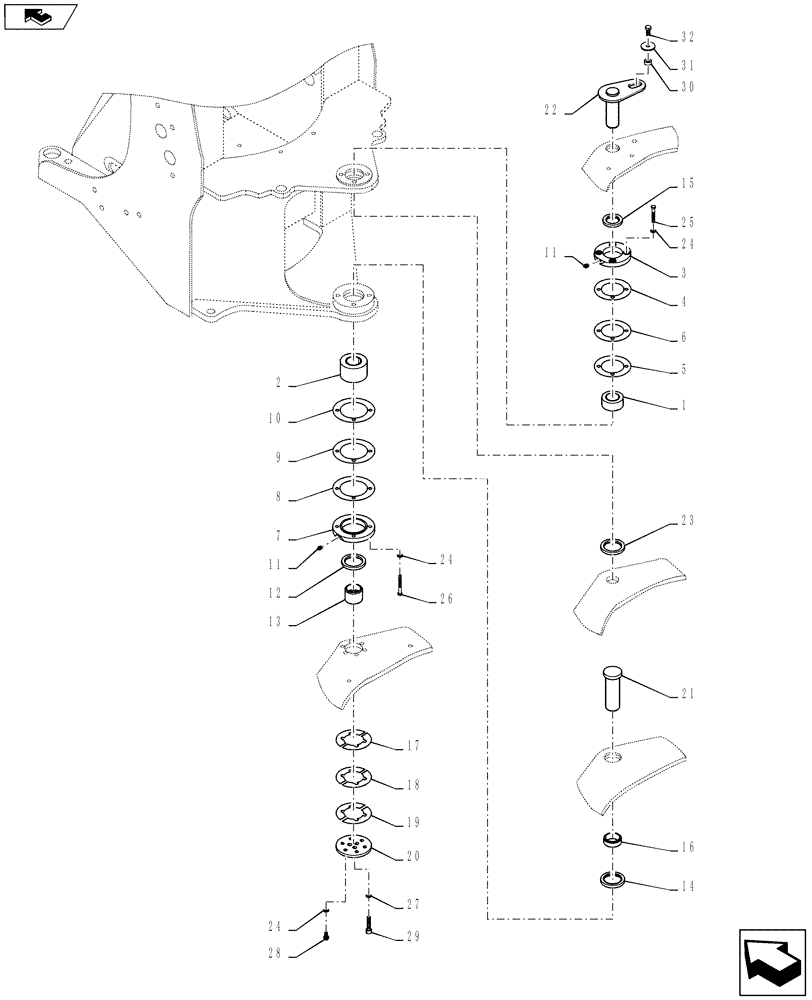

Запчасти Case 721F (39.100.AN) - JOINT ARTICULATION (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
391276A1
TAPERED BEARING,57.15mm ID x 96.84mm OD x 42.59mm W
Upper Pivot
1шт.
2
432765A1
TAPERED BEARING,63.5mm ID x 122.24mm OD x 76.61mm W
Lower Pivot
1шт.
3
391280A1
RETAINER
Upper Pivot Bearing
1шт.
4
76086821
SHIM,102mm ID x 166mm OD x 0.11mm Thk
Lower Pivot 0.1
1шт.
5
76086820
SHIM,102mm ID x 166mm OD x 0.54mm Thk
Lower Pivot 0.5
1шт.
6
76086823
SHIM,102mm ID x 166mm OD x 0.28mm Thk
Lower Pivot 0.25
1шт.
7
432909A1
RETAINER
Lower Pivot Bearing
1шт.
8
L119203
SHIM,124mm ID x 190mm OD x 0.28mm Thk
Lower Pivot 0.25mm
1шт.
9
L118989
SHIM,124mm ID x 190mm OD x 0.54mm Thk
Lower Pivot 0.5mm
1шт.
10
L118990
SHIM,124mm ID x 190mm OD x 0.11mm Thk
Lower Pivot 0.1mm
1шт.
12
L126168
SEAL,79.38mm ID x 108.05mm OD x 11.89mm Thk
Lower, Without Excluding Lip
1шт.
13
87623438
SPACER,63.54mm ID x 79.4mm OD x 58.64mm L
Lower Bearing
1шт.
14
L118978
SEAL,79.38mm ID x 108.05mm OD x 12.7mm Thk
Lower, With Excluding Lip
1шт.
15
76082983
SEAL,56.9mm ID x 88.9mm OD x 11.12mm Thk
Upper, With Excluding Lip
1шт.
16
87623437
SPACER,63.55mm ID x 79.4mm OD x 29.5mm L
Lower Bearing
1шт.
17
L118983
SHIM,90mm ID x 160mm OD x 0.11mm Thk
1шт.
18
L118980
SHIM,90mm ID x 160mm OD x 0.28mm Thk
1шт.
19
L118982
SHIM,90mm ID x 160mm OD x 0.54mm Thk
1шт.
20
84339265
PLATE
Lower Pin ZP
1шт.
21
84339264
PIN
Lower Pivot
1шт.
22
8606124
PIN,57.14mm OD x 170mm L
Upper Pivot
1шт.
23
76082981
SEAL,57.2mm ID x 89.2mm OD x 11.12mm Thk
Without Excluding Lip
1шт.
24
86625255
WASHER,13.3mm ID x 24.5mm OD x 3mm Thk
14шт.
25
412085
BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9
4шт.
26
86508622
BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9
4шт.
27
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
3шт.
28
43260
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
6шт.
29
863-16070
HEX SOC SCREW,M16 x 70mm, Cl 12.9
HEX SOC M16X70 FULL 12.9 PHC
3шт.
30
76086827
SPACER
1шт.
