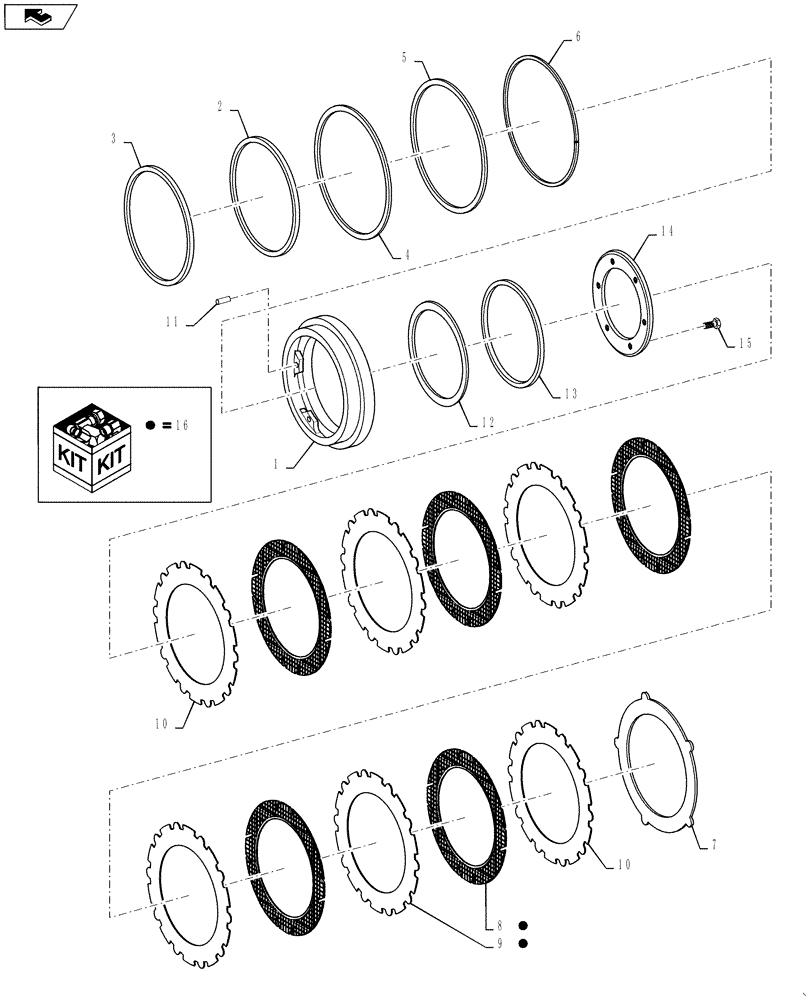

Запчасти Case 721F (33.204.AD[02]) - BRAKES, HUB DISC, REAR, STANDARD (33) - BRAKES & CONTROLS

1

84352093

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

Brake Piston U-Ring

1шт.

3

8603577

RING

Piston Seal Support

1шт.

4

8605315

SEAL

Brake Piston U-Ring

1шт.

5

8603579

RING

Piston Seal Support

1шт.

6

8603580

SNAP RING

Brake Piston Guide

1шт.

7

84150637

SHIM

End

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Incl in 16

5шт.

9

NSS

NOT SOLD SEPARAT

Ring, Incl in 16

4шт.

10

87441328

PLATE,2mm Thk

Brake Separtor 2mm

2шт.

11

87743218

PIN

Slotted

6шт.

12

87743219

WASHER

1шт.

13

87743220

WASHER

Spring

1шт.

14

87498342

COVER

1шт.

15

87743747

SCREW,Hex

Hex

6шт.

16

84572276

SERVICE KIT

Brake Service Kit, One Kit Per Axle, Front Axle Only

1шт.

16

87365253

REPAIR KIT

Brake Service Kit, One Kit Per Axle, Rear Axle Only

1шт.
