Запчасти Case 721F (27.106.AS[02]) - REAR AXLE, DIFFERENTIAL, OPEN (27) - REAR AXLE SYSTEM

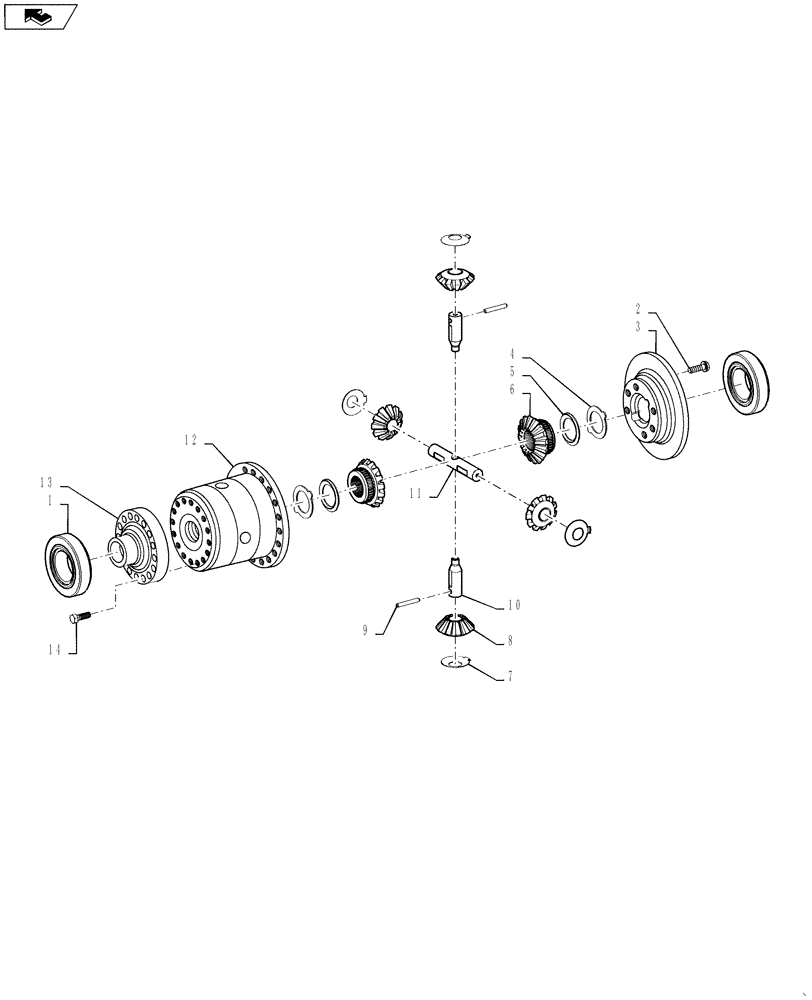

Схема запчастей Case 721F - (27.106.AS[02]) - REAR AXLE, DIFFERENTIAL, OPEN (27) - REAR AXLE SYSTEM
8
7
5
14
6
11
12
13
10
3
9
4
2
1
home

Артикул

Название

Примечание

Количество

1

84330535

TAPERED BEARING

2шт.

2

184716A1

SCREW

20шт.

3

84330534

PROTECTIVE COVER

Housing

1шт.

4

120017A1

THRUST WASHER

Thrust

2шт.

5

120019A1

THRUST WASHER

Thrust

2шт.

6

242160A1

PINION

Gear Axle Bevel

2шт.

7

84353924

THRUST WASHER

4шт.

8

120018A1

PINION

Gear Differential

4шт.

9

84353927

SLOTTED PIN

2шт.

10

84353926

DIFFERENTIAL

Axle Pinion

2шт.

11

84353925

DIFFERENTIAL

Axle Pinion

1шт.

12

84353923

AXLE HOUSING

1шт.

13

84354751

COVER

Housing

1шт.

14

84354752

HEX SOC SCREW

16шт.

Выбрано товаров: 14
