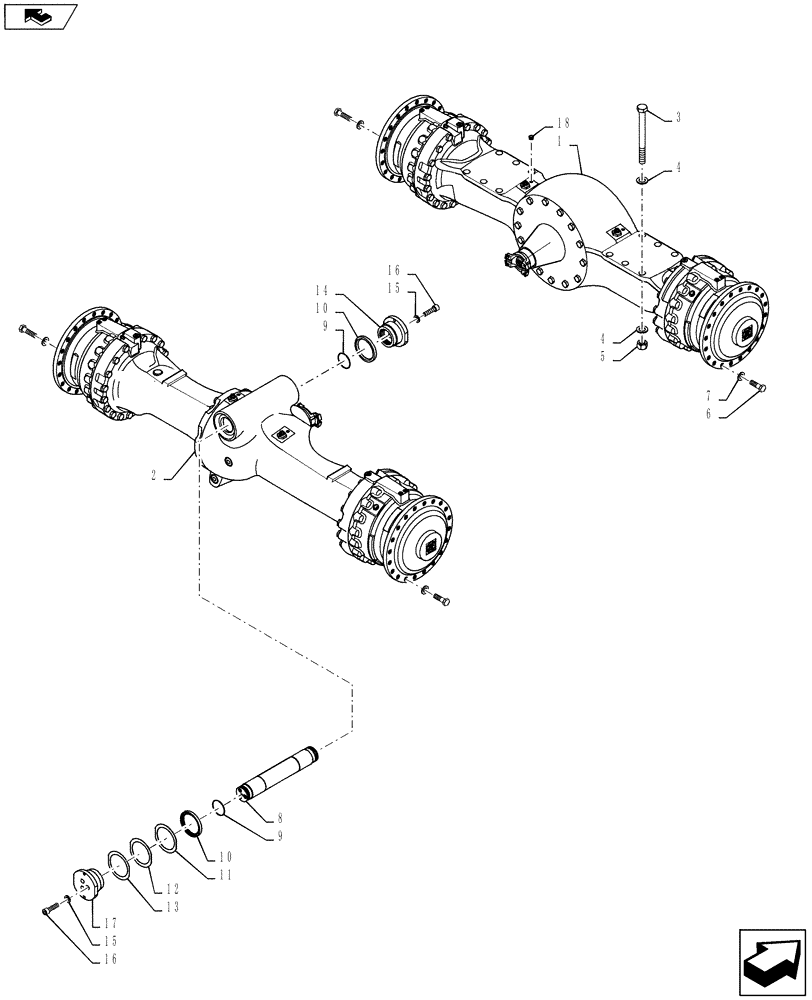

Запчасти Case 721F (25.100.AV[01]) - AXLE, FRONT AND REAR, MOUNTING, LIMITED SLIP (25) - FRONT AXLE SYSTEM

1

84234378

4WD AXLE ASSY

Front Axle

1шт.

1

84234378R

REMAN-AXLE DIF w/LTD

621F, 721F, Both WHEEL LOADER, WASTE HANDLING - TIER 4A (NA), Front Axle (7/13-), 721F WHEEL LOADER - TIER 4 / TIER 2 (NA), Front Axle

1шт.

1

84234378C

CORE-AXLE DIFF w/LTD

Return Number

1шт.

2

84234381

REAR AXLE

Rear Axle

1шт.

2

84234381R

REMAN-AXLE DIF w/LTD

721F Tier 4 Rear Axle w/Limited Slip, Reman For New P/N 84234382

1шт.

2

84234381C

CORE-AXLE DIFF w/LTD

Return Number

1шт.

2

84234387R

REMAN-REAR AXLE

721F Tier 4 Rear Axle w/Open Differential

1шт.

2

84234387C

CORE-REAR AXLE

Return Number

1шт.

3

827-24160

BOLT,Hex, M24 x 3 x 160mm, Cl 10.9

8шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

16шт.

5

829-1424

NUT,M24, Cl 10

8шт.

6

514-1315

BOLT,Hex, M22 x 1.5 x 50mm, Cl 10.9

48шт.

7

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

48шт.

8

84227513

PIVOT PIN

1шт.

9

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

10

84227510

SEAL

Oil

2шт.

11

84215454

SHIM,122.5mm ID x 157mm OD x 1.5mm Thk

1.50 mm Thick

1шт.

12

84215453

SHIM,122.5mm ID x 157mm OD x 1mm Thk

1.00 mm Thick

1шт.

13

84215452

SHIM,122.5mm ID x 157mm OD x 0.5mm Thk

.50 mm Thick

1шт.

14

84227514

CAP

End

1шт.

15

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

16

863-20070

HEX SOC SCREW,M20 x 70mm, 12.9

4шт.

17

84227515

CAP

End

1шт.

18

8603201

BREATHER

Used On Both Front And Rear Axle, Breather For Rear Axle Not Illustrated

2шт.
