Запчасти Case 721F (25.100.AD[01]) - FRONT AXLE, HOUSING (25) - FRONT AXLE SYSTEM

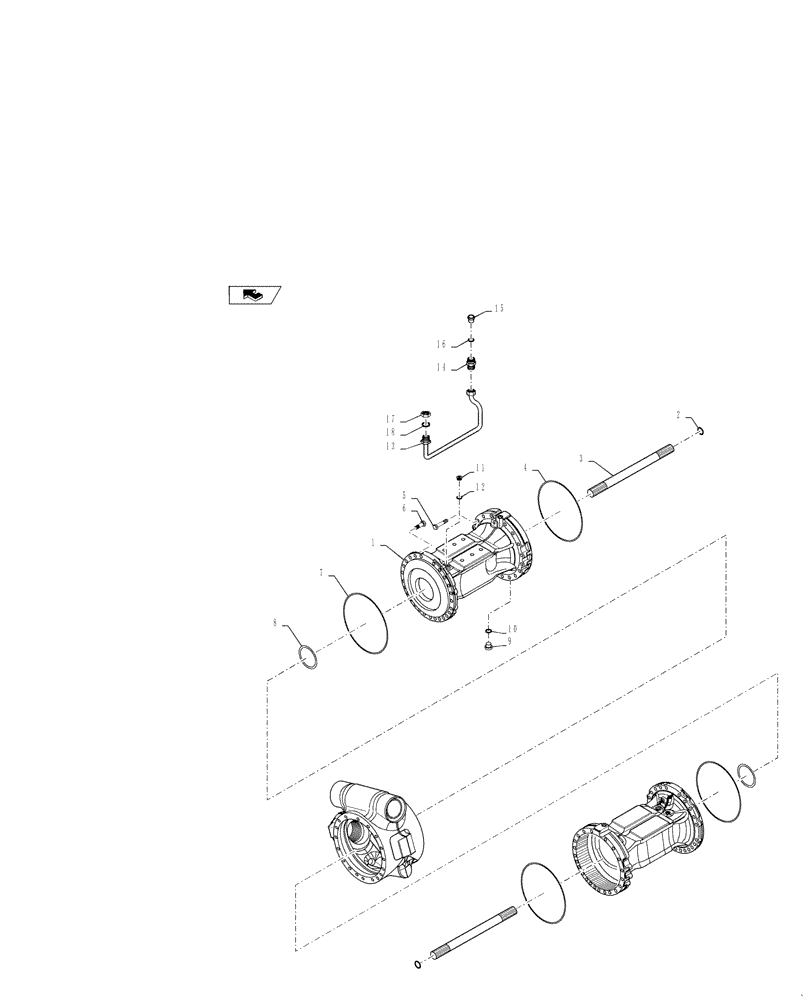

Схема запчастей Case 721F - (25.100.AD[01]) - FRONT AXLE, HOUSING (25) - FRONT AXLE SYSTEM
18
15
10
14
16
4
13
5
1
8
6
17
11
home
7
12
9
3
2

Артикул

Название

Примечание

Количество

1

84353887

AXLE HOUSING

Front, Limited Slip

2шт.

1

84354724

AXLE HOUSING

Front, Differential Lock

1шт.

1

84234384R

REMAN-FRONT AXLE w/D

Reman Complete Axle w/Diff Lock

1шт.

1

84234384C

CORE-FRT AXLE W/DIFF

Return Number

1шт.

2

8605309

SHIM,0.60mm Thk

1шт.

2

8605310

SHIM,1.00mm Thk

1шт.

2

8605311

SHIM,1.60mm Thk

1шт.

2

8605312

SHIM,2.00mm Thk

1шт.

2

8605313

SHIM,2.50mm Thk

1шт.

3

84353888

SHAFT

Stub

2шт.

4

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

360 x 2.5

2шт.

5

8603800

BOLT

M18 x 1.5 x 105-10.9

38шт.

6

84330544

HEX SOC SCREW

36шт.

7

87521445

O-RING,3mm Thk x 342mm ID

342 x 3

2шт.

8

84330538

SHIM,0.8mm Thk

0.8 mm Thk, Limited Slip

1шт.

8

84330539

SHIM

0.9 mm Thk, Limited Slip

1шт.

8

84330540

SHIM

1.0 mm Thk, Limited Slip

1шт.

8

84330541

SHIM

1.1 mm Thk, Limited Slip

1шт.

8

84354725

SHIM

mm Thk, Differential Lock

1шт.

8

84354726

SHIM

mm Thk, Differential Lock

1шт.

8

84354727

SHIM

mm Thk, Differential Lock

1шт.

8

84354728

SHIM

mm Thk, Differential Lock

1шт.

8

84354730

SHIM

mm Thk, Differential Lock

1шт.

8

84330542

SHIM

mm Thk, Differential Lock

1шт.

9

84329418

HEX SOCKET PLUG

2шт.

10

8603208

O-RING,2mm Thk x 21mm ID

21 x 2

2шт.

11

84329402

PLUG

2шт.

12

A52231

SEALING RING

2шт.

13

84354744

TUBE

2шт.

14

87743748

SLEEVE

2шт.

15

84329402

PLUG

2шт.

16

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

2шт.

17

8603619

TUBE NUT

2шт.

18

8603725

O-RING

2шт.

Выбрано товаров: 34
