Запчасти Case 721F (21.130.AZ[02]) - TRANSMISSION, 5 SPEED CONTROLLER INSTALLATION (21) - TRANSMISSION

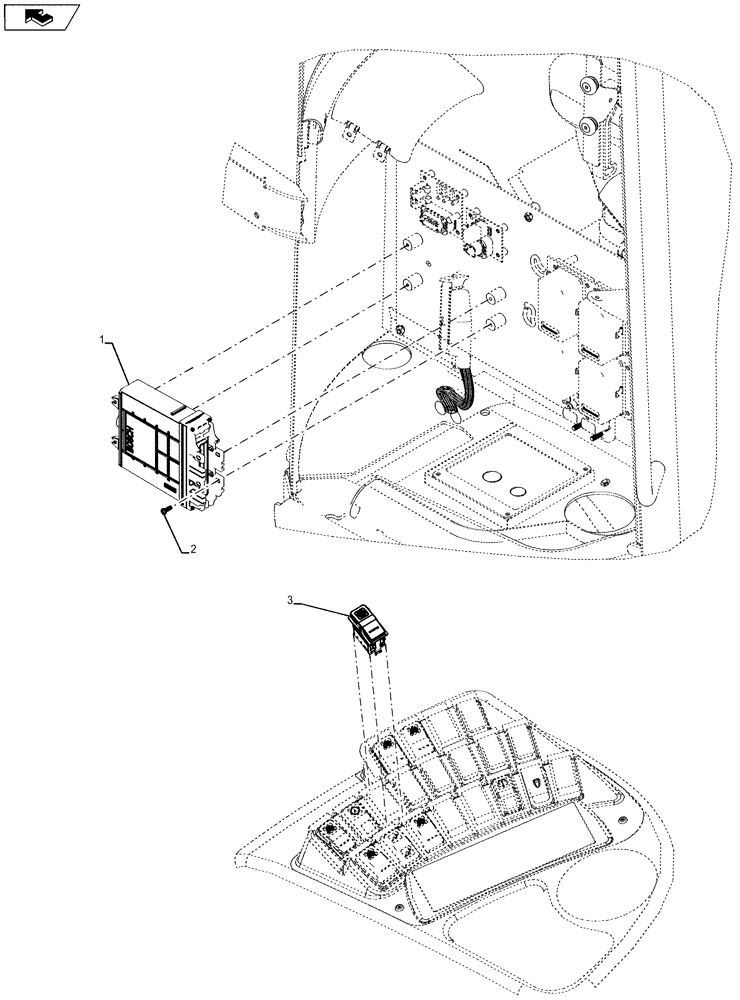

Схема запчастей Case 721F - (21.130.AZ[02]) - TRANSMISSION, 5 SPEED CONTROLLER INSTALLATION (21) - TRANSMISSION
3
1
2
home

Артикул

Название

Примечание

Количество

1

84236925

CONTROLLER

5-Speed Transmission

1шт.

1

84236925R

REMAN ELECT CONTROL

1шт.

1

84236925C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

4шт.

3

84266167

SWITCH ASSY

V Series Rocker Transmission Lockup

1шт.

Выбрано товаров: 5
