(90.119.AB[03]) - CYLINDER GUARD COVER

Запчасти Case 721F (90.119.AB[03]) - CYLINDER GUARD COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

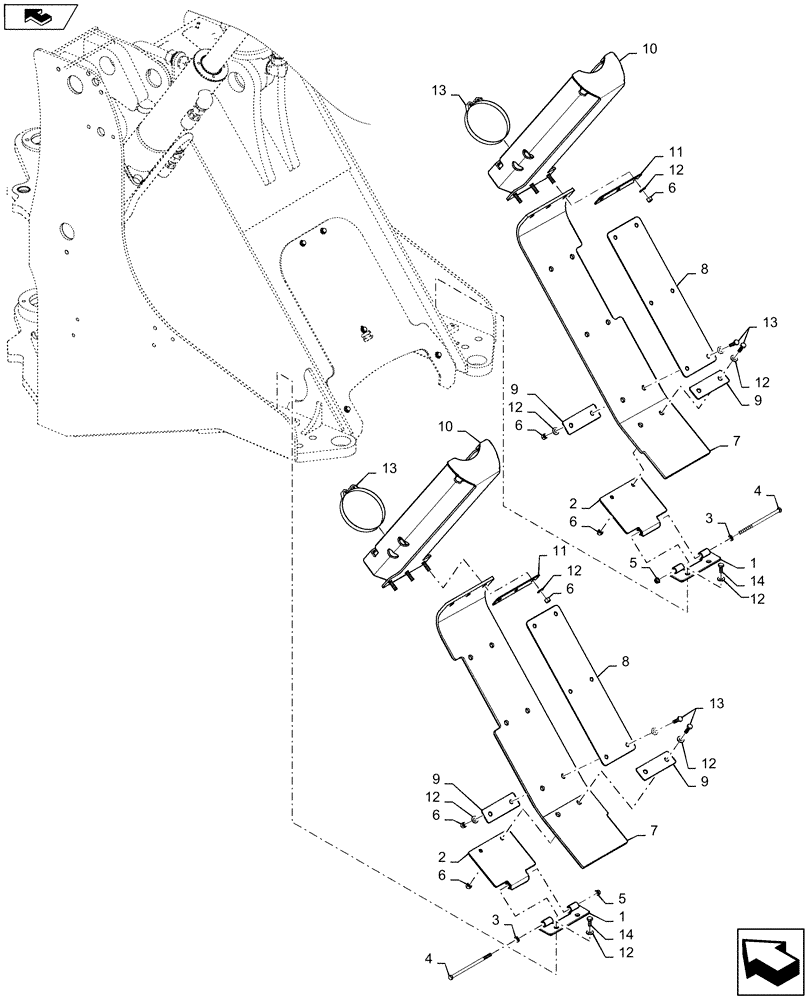

Схема запчастей Case 721F - (90.119.AB[03]) - CYLINDER GUARD COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
2
6
14
7
10
12
home
8
13
6
6
7
10
6
1
12
2
5
4
3
8
5
12
13
6
9
12
12
9
4
9
1
12
12
9
13
14
6
13
3
12
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47494930

HINGE

Mount, CE Gray

2шт.

2

47488881

HINGE

Ejector, CE Gray

2шт.

3

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

0.406X0.781X0.105 HTS ZND HDN

2шт.

4

280284

BOLT,Hex, 3/8" - 16 x 7", Gr 5

2шт.

5

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

22шт.

7

47508291

SHEET,225mm W x 1095mm L

Rubber Flap

2шт.

8

47407549

PLATE

Support, CE Gray

2шт.

9

47407553

PLATE

Flap Support, CE Gray

8шт.

10

47382602

GUARD

Cylinder, V Shape, CE Gray

2шт.

11

47407526

PLATE

Ejector Fastener, CE Gray

2шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

40шт.

13

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

20шт.

14

214-21160

CLAMP,#160, 5.87"-6.18", T-Bolt

6шт.
