(90.116.BL[02]) - FRONT CHASSIS GUARD

Запчасти Case 721F (90.116.BL[02]) - FRONT CHASSIS GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

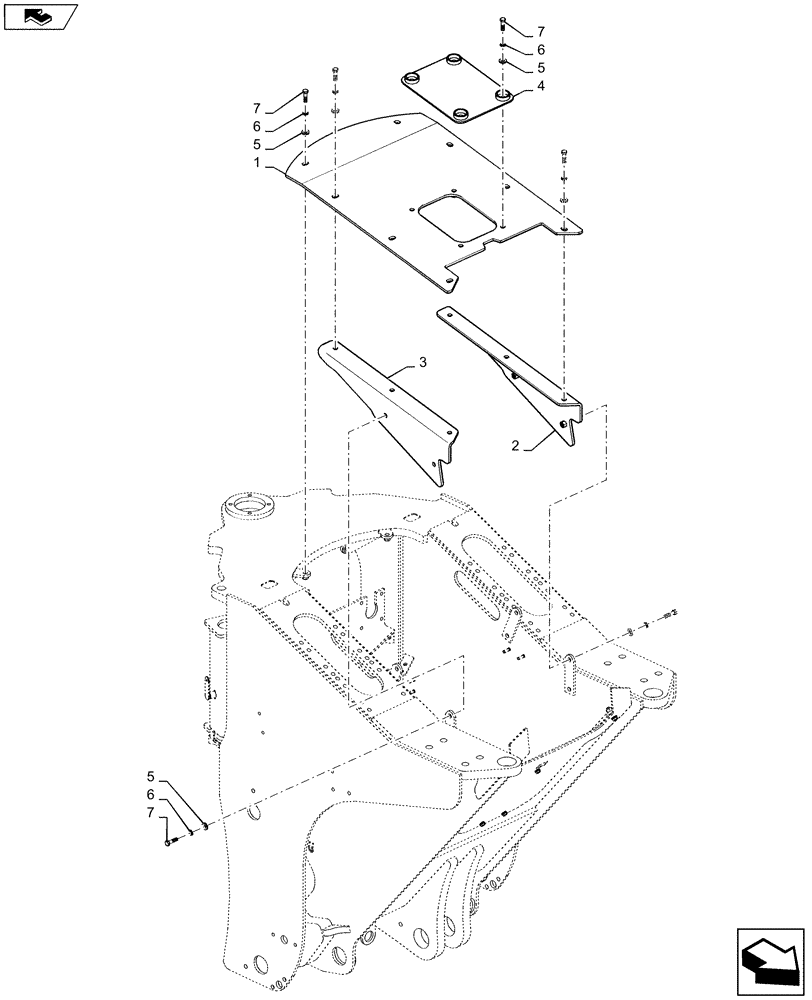

Схема запчастей Case 721F - (90.116.BL[02]) - FRONT CHASSIS GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
4
5
7
7
2
1
6
3
7
5
6
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47407540

PLATE

Front Skid, CE Gray

1шт.

2

47407556

GUARD

Belly, LH, CE Gray

1шт.

3

47407545

GUARD

Belly, RH, CE Gray

1шт.

4

47400206

GUARD

Access, CE Gray

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

16шт.

6

892-11012

LOCK WASHER,M12

16шт.

7

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

16шт.
