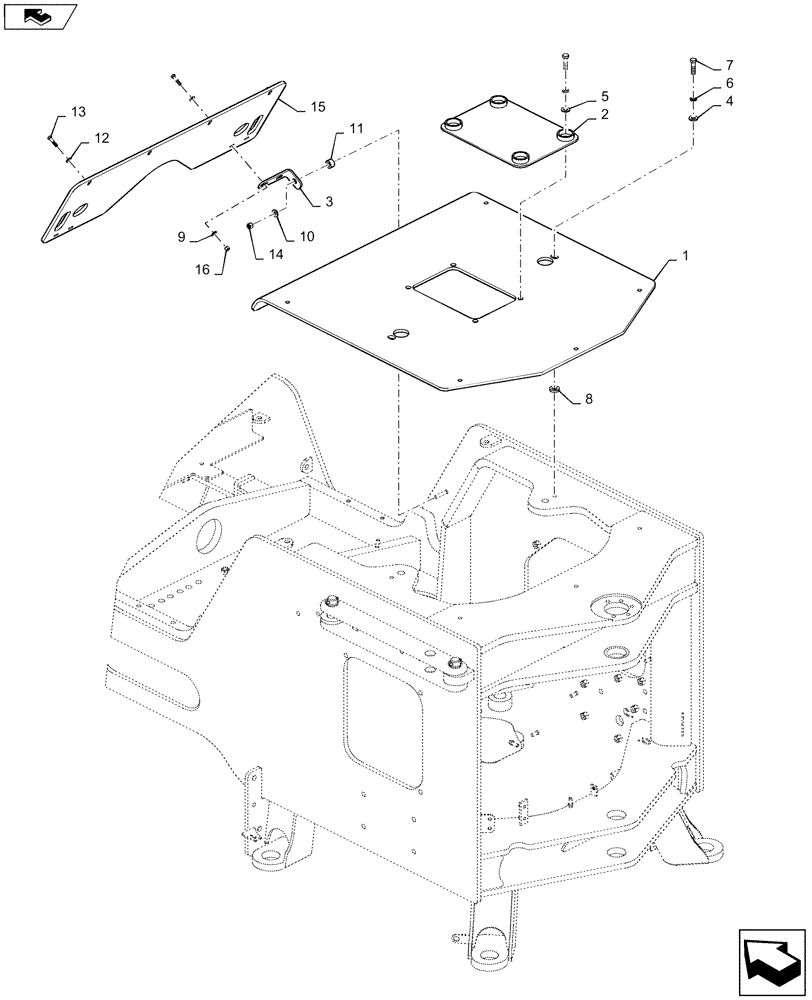

Запчасти Case 721F (90.116.BJ[02]) - TRANSMISSION GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47407558

PLATE

Trans Skid, CE Gray

1шт.

2

47400206

GUARD

Access, CE Gray

1шт.

3

87593947

BRACKET

Skid Plate, CNH Black

2шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

5

895-15012

WASHER,M12 x 28 x 2.5

4шт.

6

892-11012

LOCK WASHER,M12

11шт.

7

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

11шт.

8

496-81022

WASHER

2шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

11

372947A1

SPACER

Bracket

2шт.

12

892-11008

LOCK WASHER,8mm ID

4шт.

13

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

84370857

SKID PLATE

CNH Black

1шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.
