Запчасти Case 721F (90.100.AU[03]) - PANEL, HOOD, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

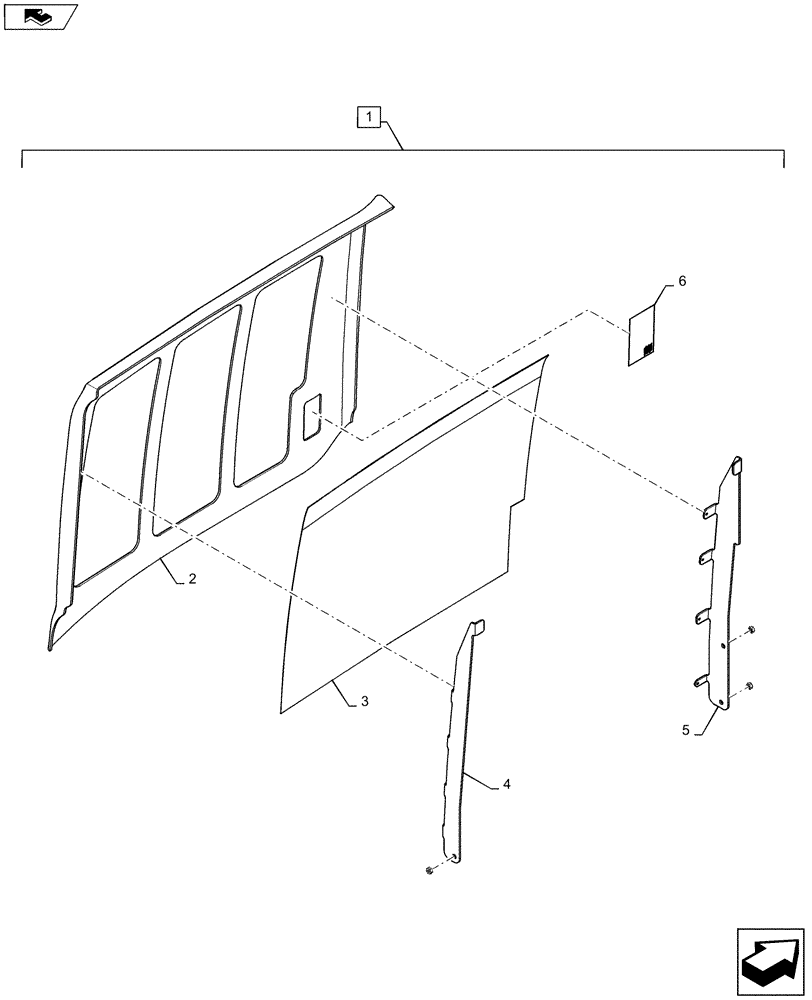

Схема запчастей Case 721F - (90.100.AU[03]) - PANEL, HOOD, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
3
6
5
4
2
1

Артикул

Название

Примечание

Количество

1

84128669

ENGINE HOOD PANEL

Assy, Case, Power Tan, Incl 2 - 7

1шт.

1

84156022

ENGINE HOOD PANEL

Assy, Alaska School Bus Yellow, Incl 2 - 7

1шт.

1

84156023

ENGINE HOOD PANEL

Assy, Omaha Orange, Incl 2 - 7

1шт.

1

84156025

ENGINE HOOD PANEL

Assy, Illinois Orange, Incl 2 - 7

1шт.

1

84156026

ENGINE HOOD PANEL

Assy, Colorado Orange, Incl 2 - 7

1шт.

1

84156027

ENGINE HOOD PANEL

Assy, Indiana Yellow, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Panel, Hood, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Screen, Hood, LH, Incl in 1

1шт.

4

8602627

PLATE

W/Rear Sliding Panel, LH

1шт.

5

NSS

NOT SOLD SEPARAT

Plate, W/Front Sliding Panel, LH, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Screen, Sight Guage Cover Case

1шт.

7

345-84

ADHESIVE

Dow Corning 732 RTV Clear, Not Illustrated

1шт.

Выбрано товаров: 12
