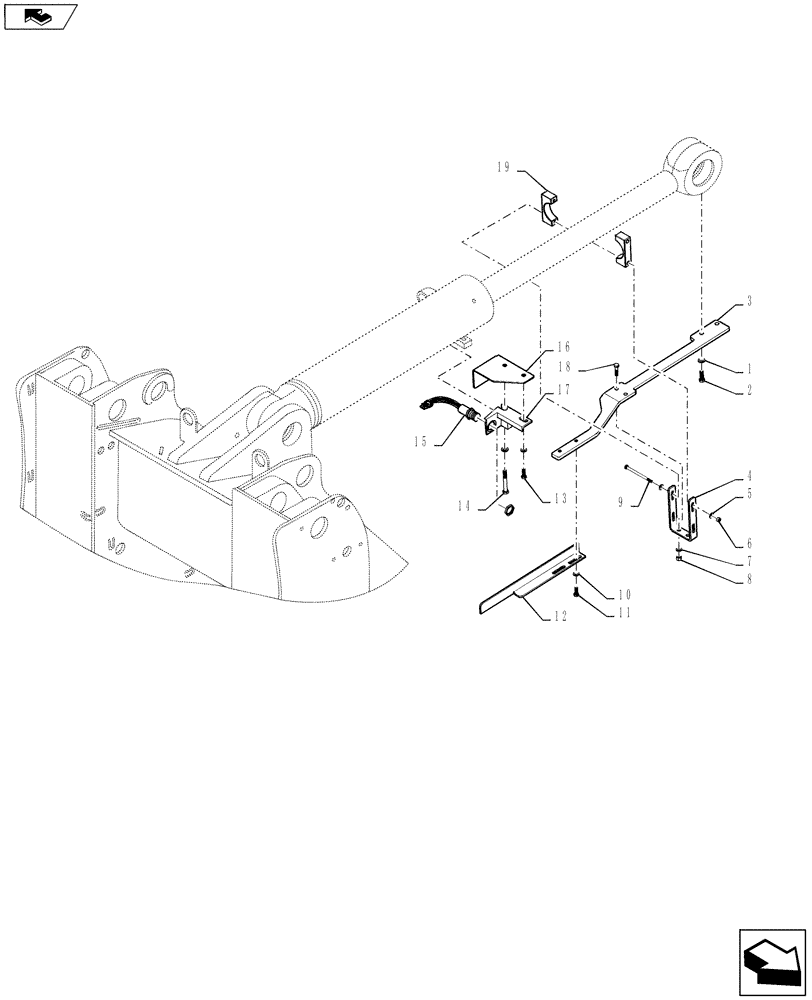

Запчасти Case 721F (55.746.AA[01]) - CONTROL, RETURN-TO-DIG (XR LOADER) (55) - ELECTRICAL SYSTEMS

1

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

2

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

3

87713865

BRACKET

1шт.

3

47841088

BRACKET

Used When Safety Valve Installed

1шт.

4

87713873

BRACKET

U-Shaped Hanger

1шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

6

86528579

NUT,M8 x 1.25

2шт.

7

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

16045721

SCREW,Hex, M8 x 125mm, Cl 8.8

M8 x 125 8.8 ZND

2шт.

10

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

11

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

12

443541A1

BRACKET

Target Rtd

1шт.

13

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

1шт.

14

412605

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

15

1546497C1

SWITCH

Proximity Switch

1шт.

16

87403966

COVER

Proximity Switch

1шт.

17

L125983

SUPPORT

Bracket, Proximity Switch

1шт.

18

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

19

87713869

CLAMP

Block

1шт.
