(55.512.CL[03]) - JOYSTICK STEERING JUMPER HARNESS

Запчасти Case 721F (55.512.CL[03]) - JOYSTICK STEERING JUMPER HARNESS (55) - ELECTRICAL SYSTEMS

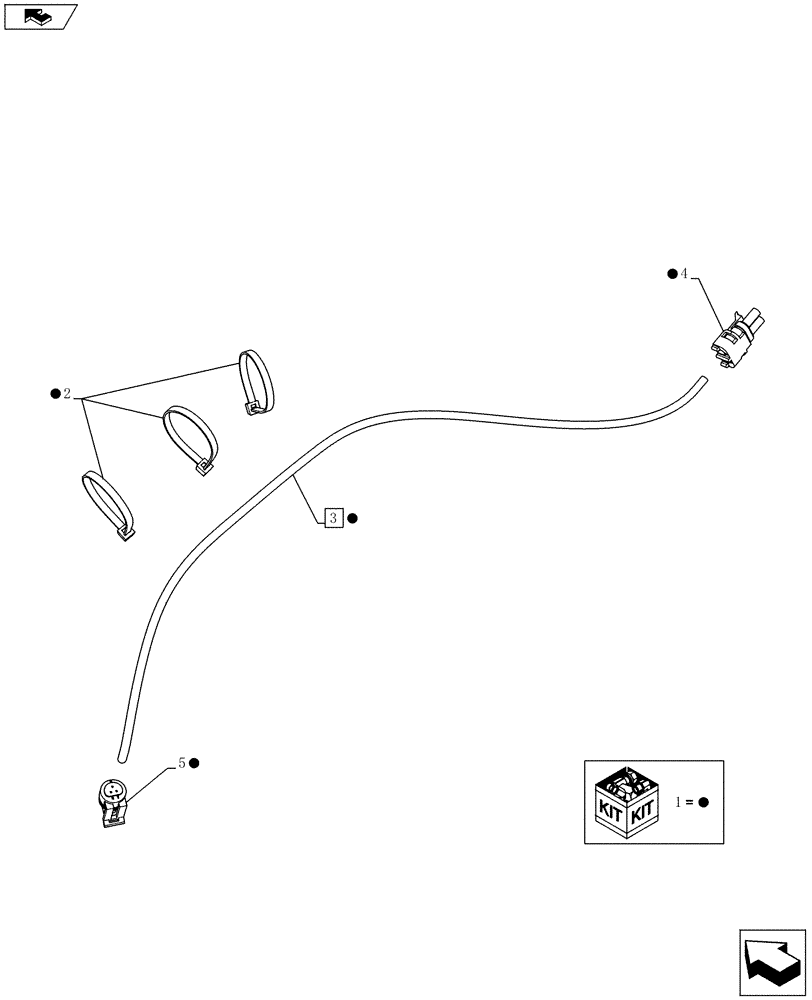

Схема запчастей Case 721F - (55.512.CL[03]) - JOYSTICK STEERING JUMPER HARNESS (55) - ELECTRICAL SYSTEMS
1
2
1
1
1
4
home
1
5
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84227716

WIRE HARNESS

Harness, Joystick Jumper Assy, Incl 2 - 5

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

Strap

3шт.

3

84222011

WIRE HARNESS

1шт.

4

245482C1

ELEC CONNECTOR,2 Pin

2 Cavity Plug

1шт.

5

198456A1

ELEC CONNECTOR,Female

3 Cavity Plug

1шт.
