Запчасти Case 721F (55.415.AQ[02]) - THREE LEVER CONTROL INSTALLATION, LOADER CONTROL (55) - ELECTRICAL SYSTEMS

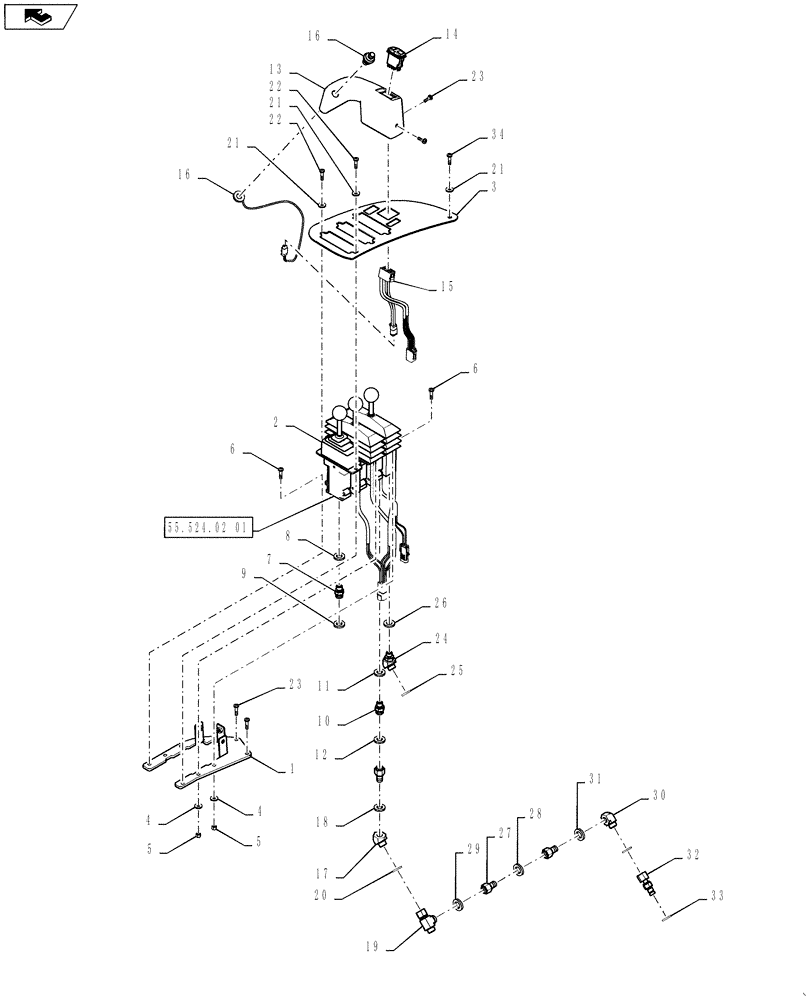

Схема запчастей Case 721F - (55.415.AQ[02]) - THREE LEVER CONTROL INSTALLATION, LOADER CONTROL (55) - ELECTRICAL SYSTEMS
6
16
17
24
9
16
19
32
15
23
8
29
11
3
10
1
4
13
18
34
31
4
20
23
14
28
2
26
21
21
33
22
12
22
5
7
30
21
25
6
27
5

Артикул

Название

Примечание

Количество

1

87534053

BRACKET

Controller

1шт.

2

407869A2

VALVE, CONTROL

3 Lever Loader Control

1шт.

3

87515559

BEZEL

3 Lever Loader Control

1шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

7

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 8 - 9

6шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

9

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 11 - 12

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

12

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

87523729

COVER

Switch

1шт.

14

400833A2

SWITCH

F-N-R

1шт.

15

87324389

WIRE HARNESS

F-N-R Switch

1шт.

16

402390A1

SWITCH

Assy, Downshift

1шт.

17

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 18

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

19

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 20

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

21

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

22

540-711

SCREW,Cross Pan Hd, M6 x 30

2шт.

23

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

5шт.

24

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 25 - 26

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

26

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

27

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

Incl 28 - 29

1шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

29

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

30

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 31

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

32

190119A1

COUPLING

Diagnostic, Incl 33

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

34

87582901

SELF-TAP SCREW,Pan, #10 - 16 x 3/4"

1шт.

Выбрано товаров: 34
