(55.404.BS) - WORK LIGHT, HIGH OUTPUT FRONT ONLY

Запчасти Case 721F (55.404.BS) - WORK LIGHT, HIGH OUTPUT FRONT ONLY (55) - ELECTRICAL SYSTEMS

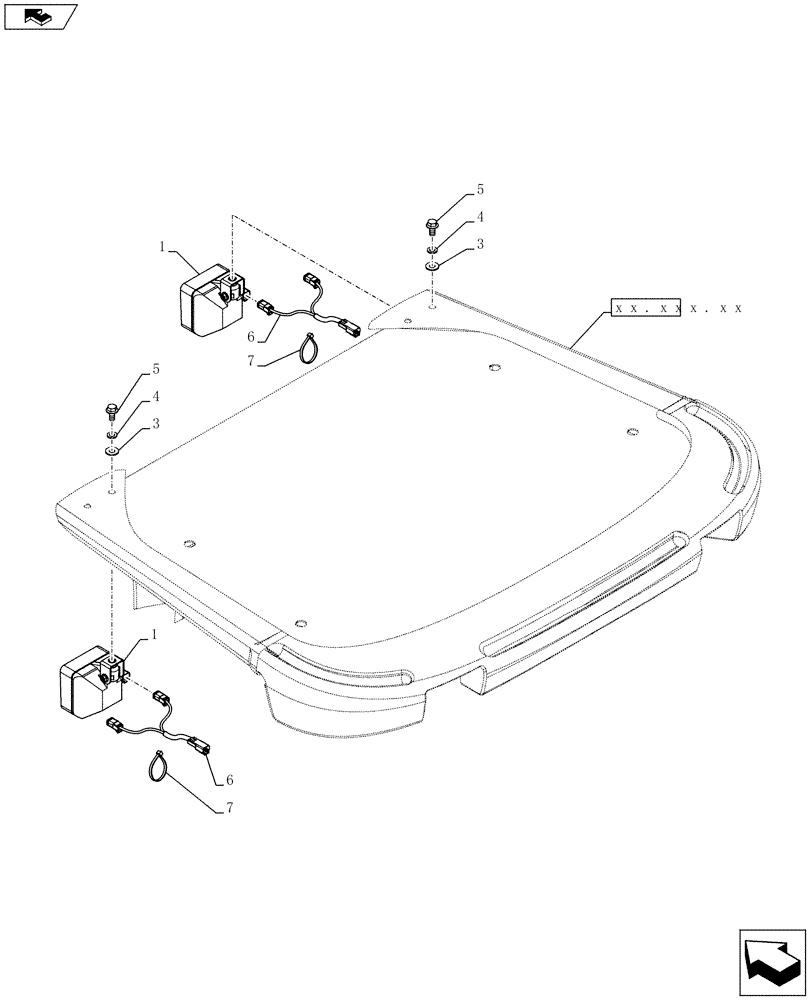

Схема запчастей Case 721F - (55.404.BS) - WORK LIGHT, HIGH OUTPUT FRONT ONLY (55) - ELECTRICAL SYSTEMS
7
5
4
6
6
3
4
1
1
7
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87555142

LIGHT ASSY.,Halogen, 24V, 65W, Clear

Incl 2

2шт.

1

47682624

WORK LAMP

LAMP, WORK, LED

2шт.

2

87563198

BULB,24V, 65 WATT, H.D. H - 3

Not Illustrated

2шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

4

892-11010

LOCK WASHER,M10

2шт.

5

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

6

84338034

WIRE HARNESS

Work Light Jumper

2шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

Strap

2шт.
