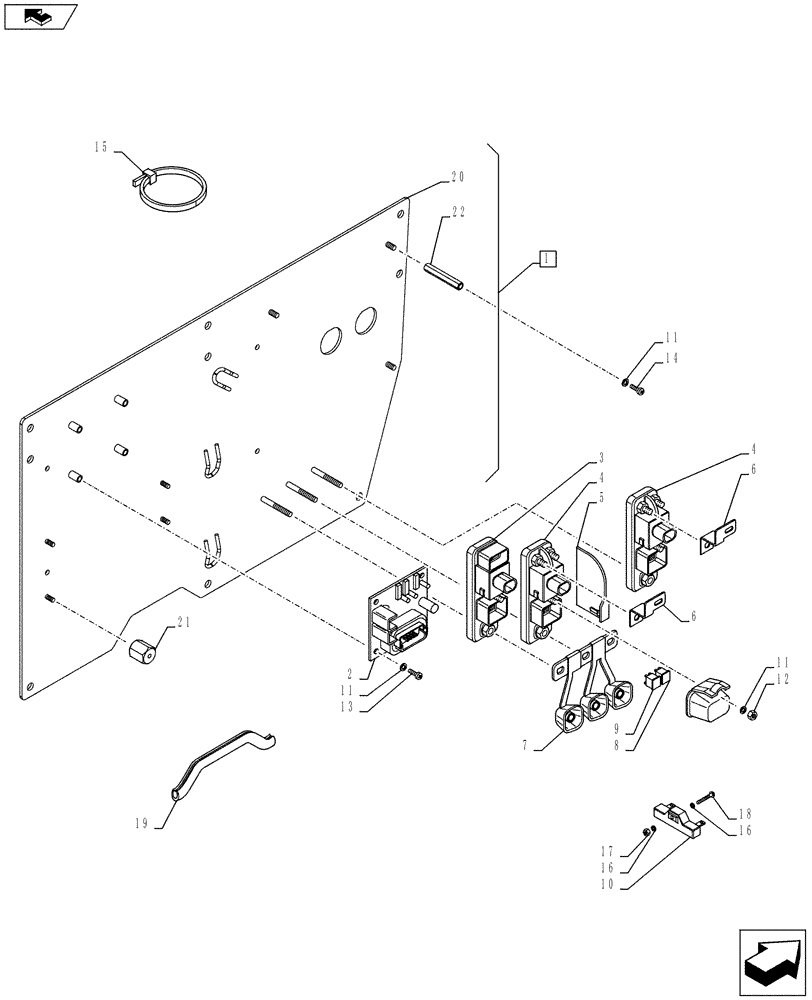

Запчасти Case 721F (55.100.DO[01]) - HARNESS, RIGHT CONSOLE FUSE AND RELAY MOUNTING (55) - ELECTRICAL SYSTEMS

1

47428348

PANEL

Assy, Incl 20 - 22

1шт.

2

232364A1

FLASHER UNIT

Module

1шт.

3

87318627

MODULE

Power Relay

1шт.

4

87315250

MODULE

Electrical Center

2шт.

5

87318617

JUNCTION BLOCK

PRM

1шт.

6

87318620

BAR

RTMR to PRM Bus

2шт.

7

87601988

BAR

PRM Input Bus Bar Assy

1шт.

8

87327335

FUSE,20 Amp

32 Volt, 20 Amp

3шт.

9

87327346

FUSE,40A, Green

32 Volt, 40 Amp

2шт.

10

F22316

RESISTOR,75 Ohms 0.2 Amps DC

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

13

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

4шт.

14

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

If Used

3шт.

15

885180004

CLAMP

Cable

3шт.

16

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

17

825-1404

NUT,M4, Cl 8

1шт.

18

86511825

SCREW,Phillips Drive, Pan HD, M4 x 30mm, Cl 4.8

1шт.

19

87661964

GASKET

1шт.

20

NSS

NOT SOLD SEPARAT

Electrical Panel, Unfinished, Incl in 1

1шт.

21

87700053

BUSHING,Hex, M5 x 0.8 x 24mm L

Hexagonal

4шт.

22

87700052

BUSHING,Hex, M6 x 1 x 57mm L

Hexagonal

3шт.
