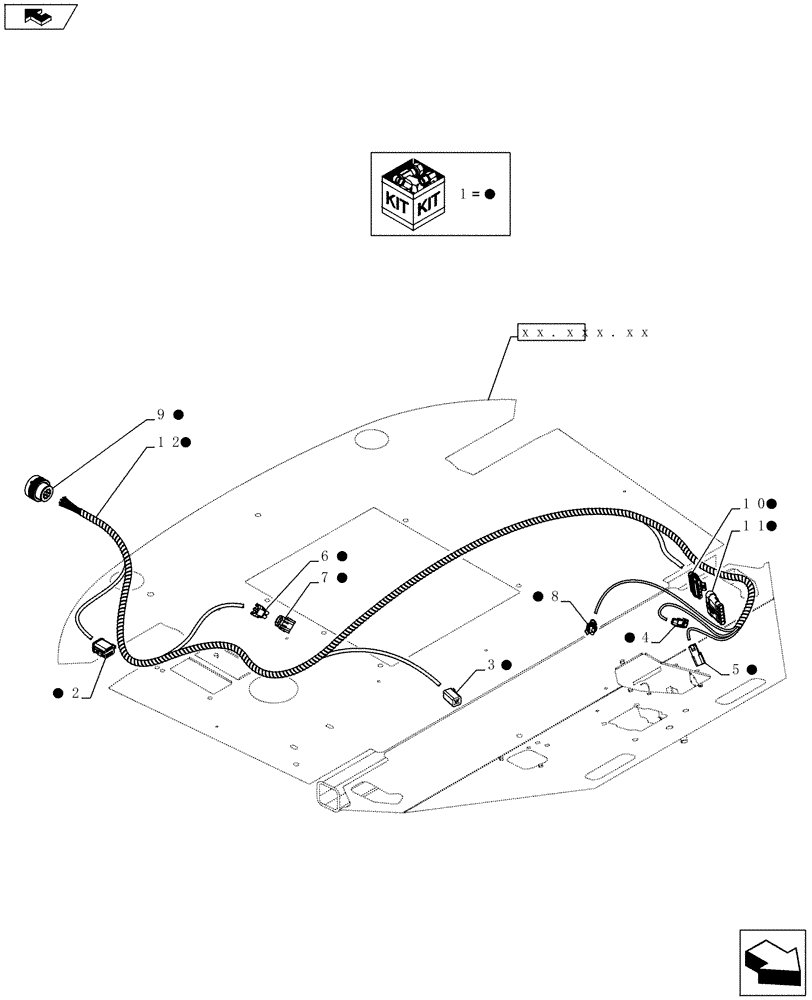

Запчасти Case 721F (55.100.19) - HARNESS, CAB BOTTOM (55) - ELECTRICAL SYSTEMS
1
home
1
1
10
1
xx.xxx.xx
1
1
2
8
1
1
1
12
1
11
5
3
7
1
9
1
6
1
4
№
Артикул
Название
Примечание
Количество
1
84328066
HARNESS
Cab Bottom Inc. 2-12
1шт.
2
225408C1
CONNECTOR, ELEC
CONNECTOR 8-Caviety Plug
1шт.
3
225351C1
ELEC CONNECTOR,Female, 6 Pin
6-Caviety Plug
1шт.
4
225316C1
ELEC CONNECTOR,Female, 2 Pin
2-Caviety Plug
1шт.
5
222136A1
ELEC CONNECTOR,Male, 2 Pin
2-Caviety Recepticle
1шт.
6
245482C1
ELEC CONNECTOR,2 Pin
2-Caviety Plug
1шт.
7
245483C1
ELEC CONNECTOR,Male, 2 Pin
2-Caviety Recepticle
1шт.
8
371614A1
ELEC CONNECTOR,Female, 2 Pin
2-Caviety Plug
1шт.
9
87703931
ELEC CONNECTOR
CONNECTOR, 14-Way Recepticle
1шт.
10
87710588
ELEC CONNECTOR
CONNECTOR, 1.5 Amp 6-Way Recepticle
1шт.
11
87691968
ELEC CONNECTOR,Female, 6 Cavities
CONNECTOR, 1.5 Amp 6-Way Tab
1шт.
12
NSS
NOT SOLD SEPARAT
Butt Splice
1шт.
Выбрано товаров: 12
