Запчасти Case 721F (55.100.17) - HARNESS, CAB ROOF (55) - ELECTRICAL SYSTEMS

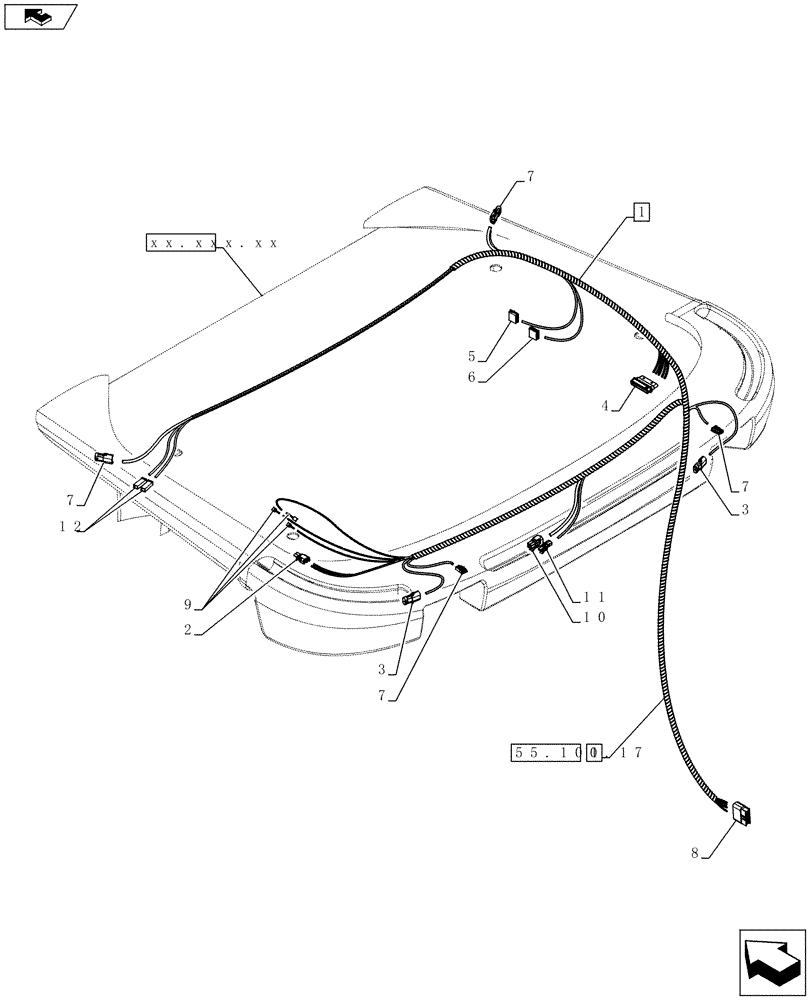

Схема запчастей Case 721F - (55.100.17) - HARNESS, CAB ROOF (55) - ELECTRICAL SYSTEMS
home
1
7
11
6
3
xx.xxx.xx
3
4
7
12
1
9
5
7
10
55.100.17
8
7
2

Артикул

Название

Примечание

Количество

1

87517052

WIRE HARNESS

Roof Harness Inc 2-12

1шт.

2

245482C1

ELEC CONNECTOR,2 Pin

2-Cavity Door Switch

1шт.

3

195552A1

ELEC CONNECTOR,Female, 2 Pin

2-Cavity Left Speaker

2шт.

4

NSS

NOT SOLD SEPARAT

CONNECTOR, 12-Cavity Ground Roof Splice

1шт.

5

292494A1

ELEC CONNECTOR

8-Cavity Speaker

1шт.

6

292495A1

ELEC CONNECTOR

8-Cavity Radio Power

1шт.

7

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Front Work Light

4шт.

8

388708A1

CONNECTOR, ELEC

CONNECTOR 16-Cavity Roof to Cab Connection

1шт.

9

NSS

NOT SOLD SEPARAT

CONNECTOR, 1-Cavity

3шт.

10

245715C1

ELEC CONNECTOR,4 Pin

4-Cavity Rear Wiper Motor

1шт.

11

245480C1

ELEC CONNECTOR,1 Pin

1-Cavity Rear Wiper Motor Ground

1шт.

12

475061C1

CONNECTOR, ELEC

CONNECTOR 1-Cavity Light Beacon Power and Ground

2шт.

Выбрано товаров: 12
