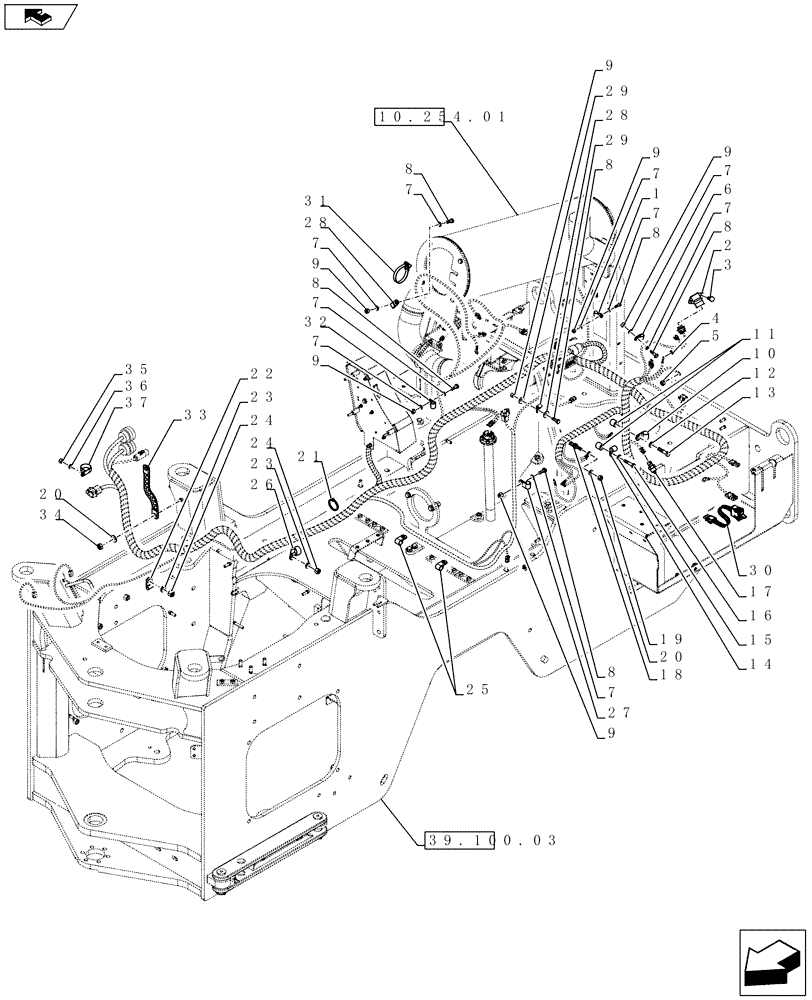

Запчасти Case 721F (55.100.11[02]) - HARNESS INSTALLATION, ENGINE (55) - ELECTRICAL SYSTEMS

1

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

2

87482355

SENSOR

1шт.

3

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

4

824-1404

NUT,M4, Cl 5

1шт.

5

425-107

NUT,7/16"-14, G5

1шт.

6

515-22111

CLAMP,7/16", Insul, 5/16" Bolt

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

8

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

7шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

10

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

1шт.

11

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

Bushing Handle

2шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

13

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

14

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

15

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

16

627-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9, Full Thd

1шт.

17

321446A1

SENSOR

Engine Coolant

1шт.

18

L127553

STUD

Brass

2шт.

19

L127555

NUT,Hex, 3/8" - 16

Brass

2шт.

20

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

4шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

22

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

25

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

26

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

3шт.

27

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

28

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

4шт.

29

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

30

87350087

SWITCH

Hood Lift

1шт.

31

84266055

PLASTIC

Tie Wrap

1шт.

32

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

33

L126051

GROUND STRAP

1шт.

34

253347A1

NUT,Hex, M10 x 1.5

Brass

2шт.

35

832-10406

NUT,M6 x 1, Cl 8

1шт.

36

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

37

515-21302

CLAMP,1 3/16", Insul, 1/4" Bolt

1шт.
