Запчасти Case 721F (55.100.09[01]) - HARNESS, ENGINE AND REAR CHASSIS (55) - ELECTRICAL SYSTEMS

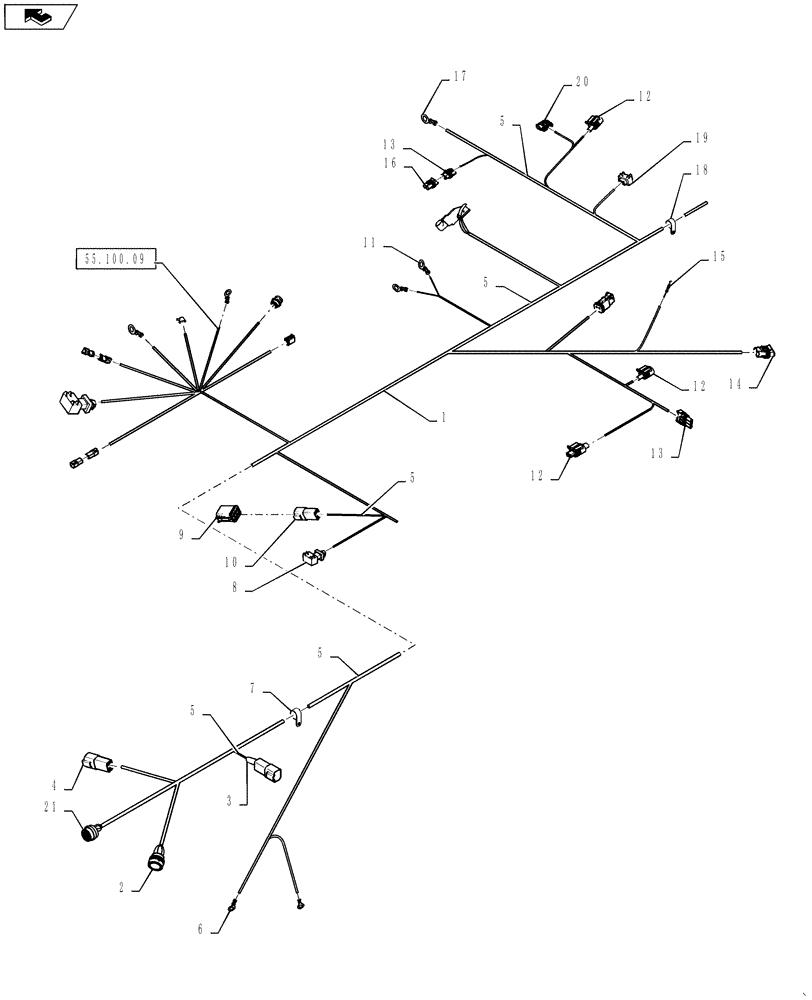

Схема запчастей Case 721F - (55.100.09[01]) - HARNESS, ENGINE AND REAR CHASSIS (55) - ELECTRICAL SYSTEMS
5
20
55.100.09
16
14
18
1
5
8
11
3
7
17
12
home
6
12
2
5
4
12
9
19
13
13
5
15
10
21
5

Артикул

Название

Примечание

Количество

1

84373442

WIRE HARNESS

Engine And Rear Chassis

1шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

3

225411C1

CONNECTOR, ELEC

CONNECTOR 8-Cavity Recepticle

1шт.

4

277431A1

CONNECTOR, ELEC

CONNECTOR 1-Cavity Plug

1шт.

5

NSS

NOT SOLD SEPARAT

Butt Splice

10шт.

6

3227856R1

CONNECTION

2-Cavity Recepticle

2шт.

7

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

8

256340A1

CONNECTOR, ELEC

CONNECTOR

1шт.

9

225315C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Recepticle

1шт.

10

225316C1

ELEC CONNECTOR,Female, 2 Pin

2-Cavity Plug

1шт.

11

1964703C1

TERMINAL CONNECTOR

Ring

2шт.

12

NSS

NOT SOLD SEPARAT

CONNECTOR

3шт.

13

84062580

CONNECTOR, ELEC

CONNECTOR

1шт.

14

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

15

182069A1

CONNECTOR, ELEC

CONNECTOR

2шт.

16

182068A1

CONNECTOR, ELEC

CONNECTOR 2-Cavity Recepticle

1шт.

17

1964706C1

TERMINAL CONNECTOR

Ring

1шт.

18

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

2шт.

19

8602416

CONNECTOR,ELECTRIC

3-Pin Plug

1шт.

20

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

21

374973A1

CONNECTOR,ELECTRIC

31-Cavity Plug

1шт.

Выбрано товаров: 21
