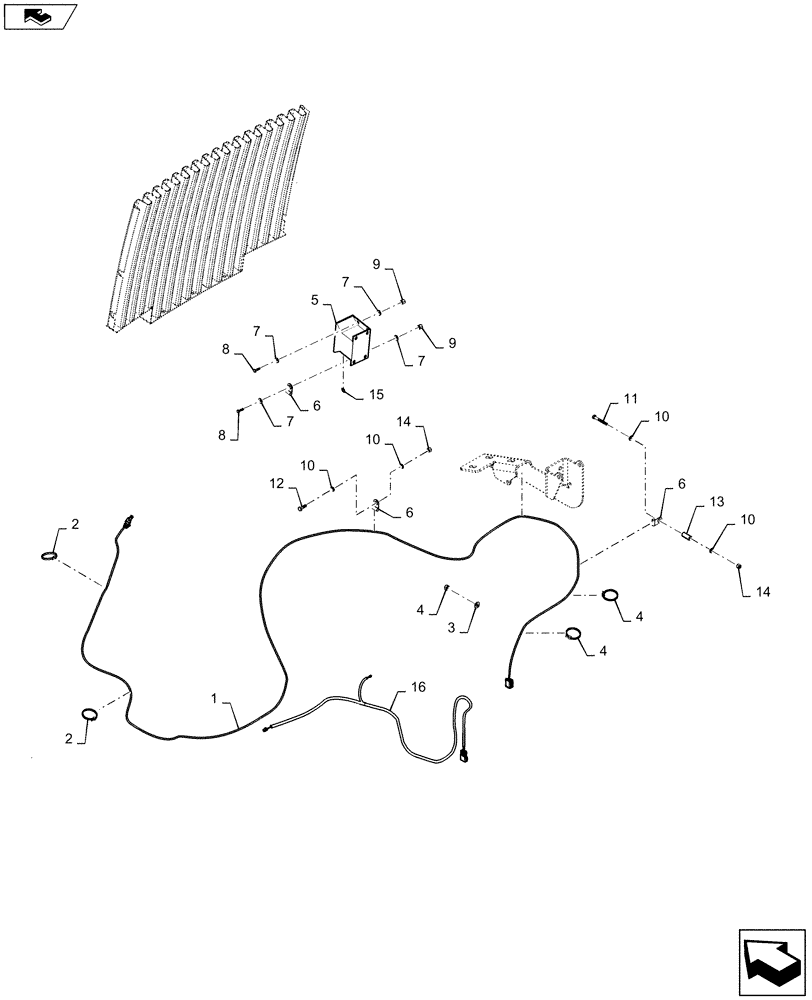

Запчасти Case 721F (55.100.08) - HARNESS, BACKUP ALARM AND INSTALLATION - EU LIGHTING (55) - ELECTRICAL SYSTEMS

1

47365386

WIRE HARNESS

Hood, Backup Alarm

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

7шт.

3

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

4

253347A1

NUT,Hex, M10 x 1.5

3шт.

5

D121972

ALARM

1шт.

6

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

4шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

9

832-10406

NUT,M6 x 1, Cl 8

3шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

11

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

13

L126936

SPACER

1шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

15

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

16

47365368

WIRE HARNESS

Euro Lighting

1шт.
