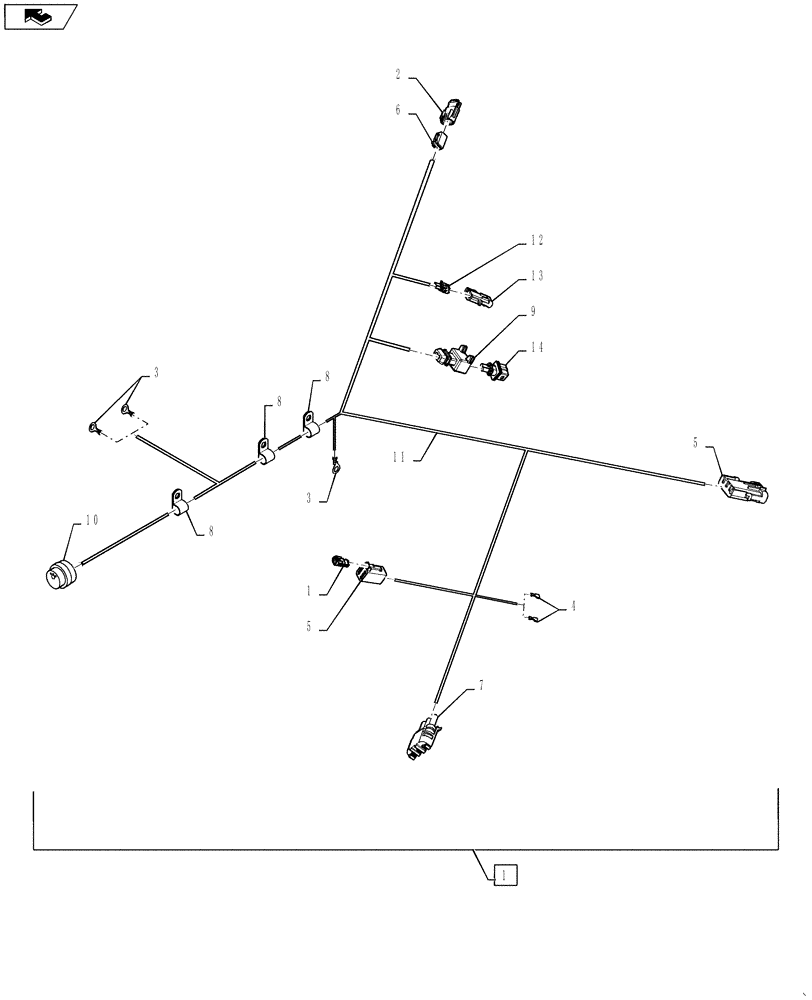

Запчасти Case 721F (55.100.07) - HARNESS, FRONT CHASSIS (55) - ELECTRICAL SYSTEMS

1

84292034

WIRE HARNESS

Front Chassis

1шт.

2

84253889

JUNCTION

CONNECTOR

2шт.

3

1964718C1

TERMINAL CONNECTOR

Ring

3шт.

4

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

2шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

3 Cavity Recepticle

1шт.

6

225351C1

ELEC CONNECTOR,Female, 6 Pin

6 Cavity Plug

2шт.

7

245484C1

ELEC CONNECTOR,3 Pin

3 Cavity Plug

1шт.

8

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

3шт.

9

291718A1

ELEC CONNECTOR,Female, 2 Pin

2 Pin Plug

1шт.

10

319149A1

CONNECTOR, ELEC

CONNECTOR 18 Cavity Recepticle

1шт.

11

Butt Splice

3шт.

12

245482C1

ELEC CONNECTOR,2 Pin

2 Cavity Plug

1шт.

13

245483C1

ELEC CONNECTOR,Male, 2 Pin

2 Cavity Recepticle

1шт.

14

291717A1

ELEC CONNECTOR,Male, 2 Pin

2 Pin Recepticle

1шт.
