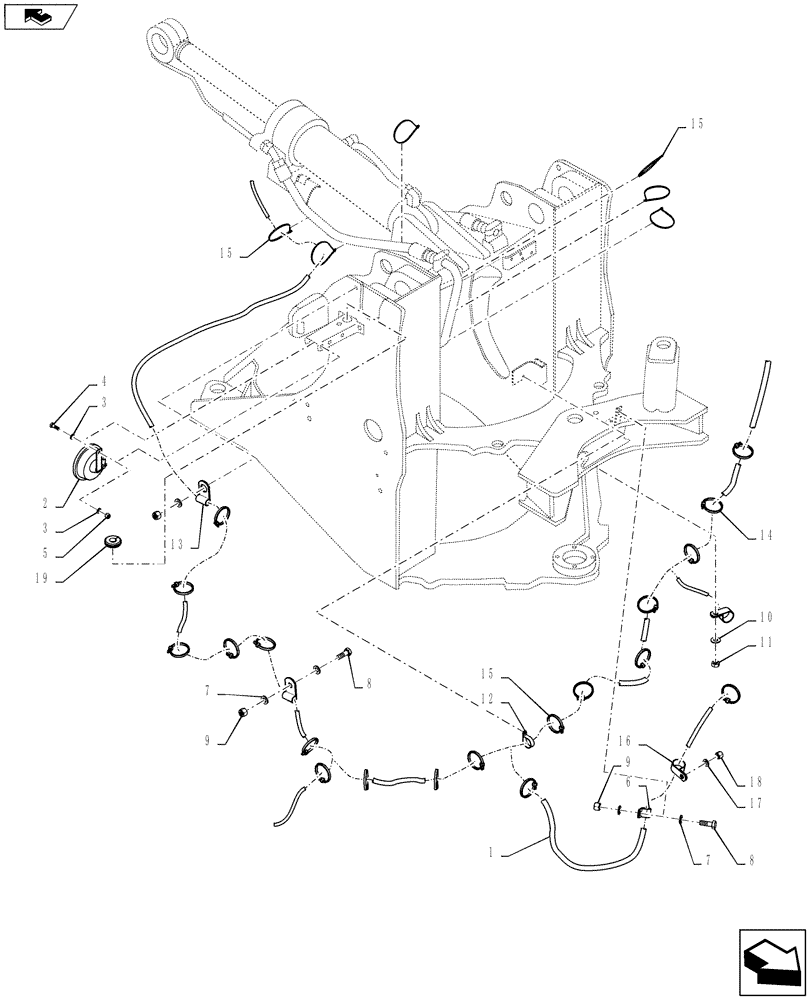

Запчасти Case 721F (55.100.06) - HARNESS INSTALLATION, FRONT CHASSIS (55) - ELECTRICAL SYSTEMS

1

84292034

WIRE HARNESS

Front Chassis Harness

1шт.

2

87382200

HORN

300 Hz

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

6

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

10

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

11

253347A1

NUT,Hex, M10 x 1.5

2шт.

12

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

1шт.

13

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

1шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

15

19-135

CABLE TIE

21шт.

16

515-21190

CLAMP,3/4", Insul, 1/4" Bolt

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

832-10406

NUT,M6 x 1, Cl 8

1шт.

19

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

1шт.
