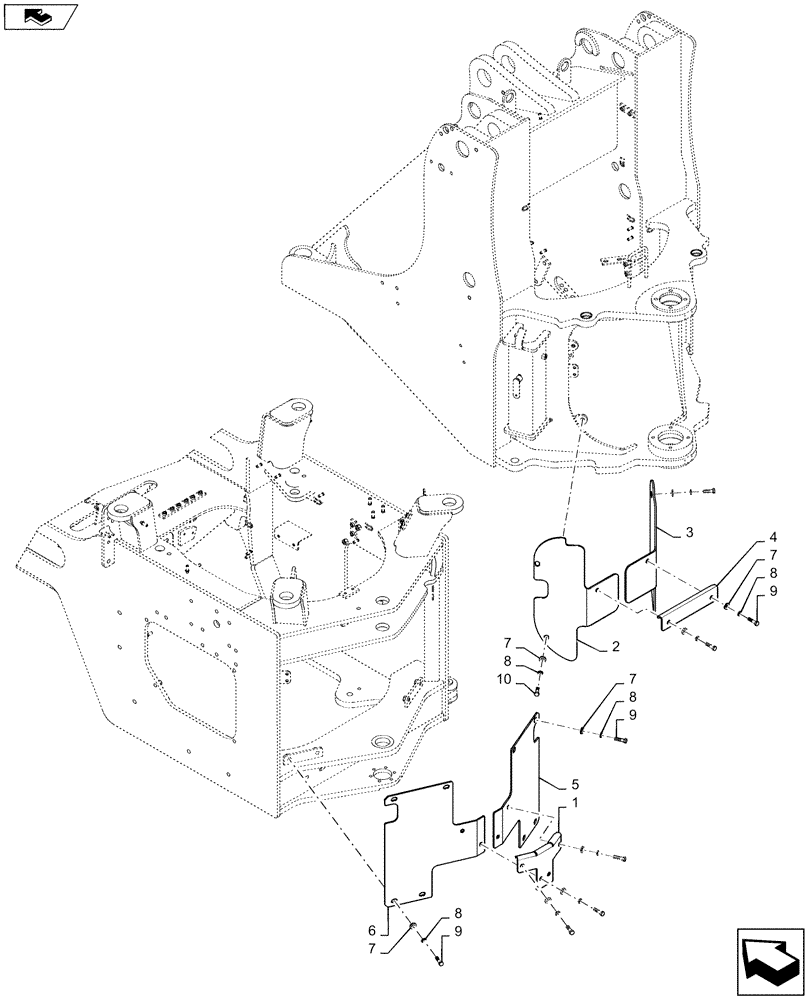

Запчасти Case 721F (41.106.AD[02]) - ARTICULATION JOINT (41) - STEERING

1

47400212

PROTECTION PLATE

Rear Art Joint Plate, CE Gray

1шт.

2

47400220

PROTECTION PLATE

Front Art Joint, LH, CE Gray

1шт.

3

47400218

PROTECTION PLATE

Front Art Joint, RH, CE Gray

1шт.

4

47400229

PROTECTION PLATE

Front Art Joint Plate, CE Gray

1шт.

5

47400193

COVER

Rear Art Joint, LH, CE Gray

1шт.

6

47400192

COVER

Rear Art Joint, RH, CE Gray

1шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

18шт.

8

892-11012

LOCK WASHER,M12

18шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.
