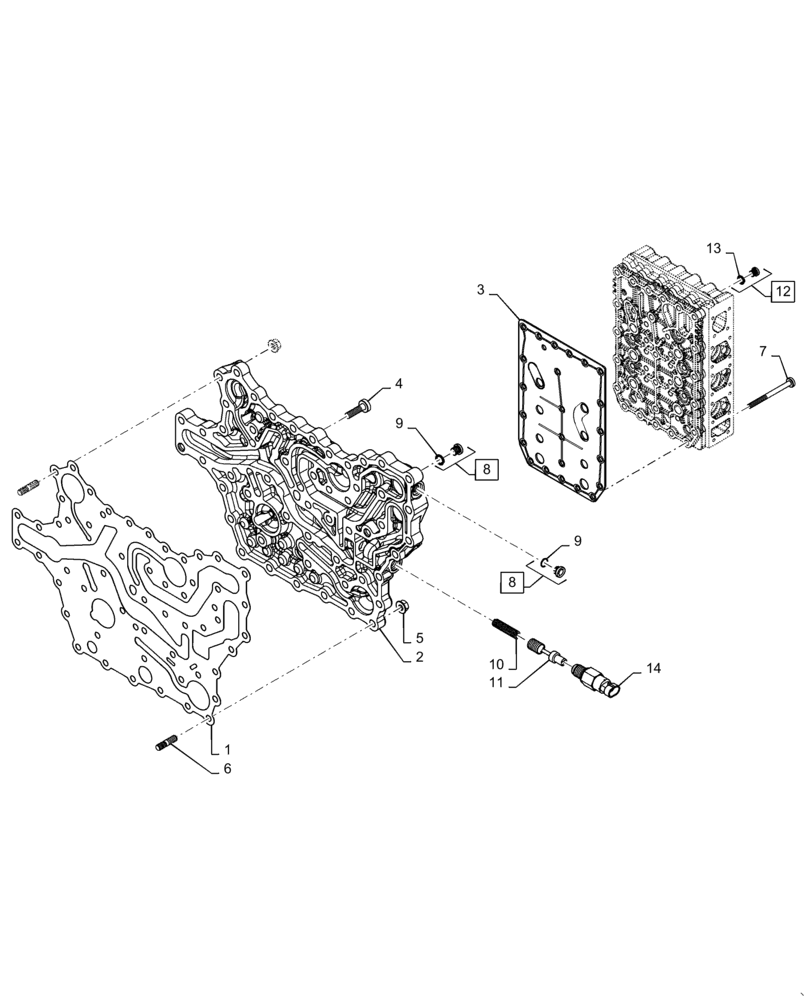

Запчасти Case 721F (21.135.AQ) - MANIFOLD CONTROL VALVE (21) - TRANSMISSION

1

8603804

GASKET

Housing to Manifold

1шт.

2

8603805

PLATE

Valve Duct

1шт.

3

87712665

PLATE

Sealing

1шт.

4

8603308

SCREW

Valve Duct

36шт.

5

8603315

NUT

Valve Duct

14шт.

6

8900128373

STUD

Valve Duct

14шт.

7

8603182

SCREW,M6 x 76mm

23шт.

8

84357396

HEX PLUG

Valve Duct Plate, Incl 9

2шт.

9

8603358

O-RING,2mm Thk x 13mm ID

2шт.

10

8603534

SPRING

Compression

1шт.

11

8603533

PISTON

Piston, Filter Restriction

1шт.

12

84357391

HEX PLUG

Main Body, Incl 13

8шт.

13

8603215

O-RING,8mm ID x 1.5mm Width

8шт.

14

8603537

SWITCH

Filter Restriction

1шт.
