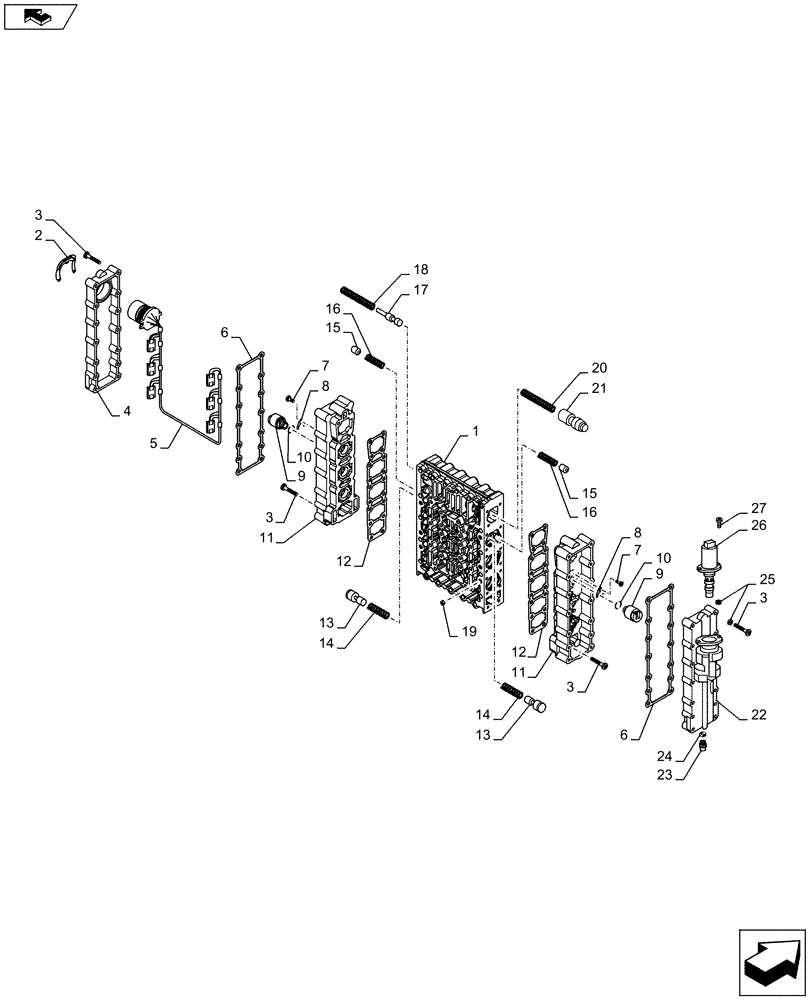

Запчасти Case 721F (21.135.AQ[01]) - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION

1

84122174

BLOCK

Valve Main Body

1шт.

2

8603362

CLAMP

Retaining

1шт.

3

8603377

SCREW

Captured Housing

64шт.

4

8603361

COVER

Outer Housing

1шт.

5

8603625

WIRE HARNESS

Transmission Control Valve

1шт.

6

87453965

GASKET

Transmission Housing to Cover

2шт.

7

8603359

SCREW

Housing Mounting

6шт.

8

8603218

PLATE

Fixing

6шт.

9

8603624

REGULATING SYSTEM

Pressure

6шт.

10

8603538

O-RING,13.5mm ID x 2mm Width

6шт.

11

8603376

HOUSING

Side Plate

2шт.

12

8603786

GASKET

Side Plate Housing to Main Valve Housing

2шт.

13

8603368

PLUNGER

Main Valve Housing Insert

6шт.

14

8603369

SPRING

Compression, Plunger

6шт.

15

8603370

PISTON

Main Valve Housing Insert

6шт.

16

8603371

SPRING

Compression, Piston

6шт.

17

8603372

PISTON

Main Valve Body Insert

1шт.

18

8603374

SPRING

Compression, Piston

1шт.

19

8603367

ORIFICE

Main Valve Body Insert, Plug

6шт.

20

8603375

SPRING

Compression, Plunger

1шт.

21

8603623

PLUNGER

Main Valve Body Insert

1шт.

22

84122175

HOUSING

Connect, Outer Cover

1шт.

23

84357374

UNION

Hydraulic Hose

1шт.

24

3140892R1

O-RING

Hydraulic Hose Union

1шт.

25

84122176

RING

Clamp

3шт.

26

84122177

REGULATOR

Pressure Switch, Valve

1шт.

27

84357372

SCREW

Torx, Pressure Regulator

2шт.
