(21.105.BC) - TRANSMISSION OIL FILTER AND FILLER COVERS

Запчасти Case 721F (21.105.BC) - TRANSMISSION OIL FILTER AND FILLER COVERS (21) - TRANSMISSION

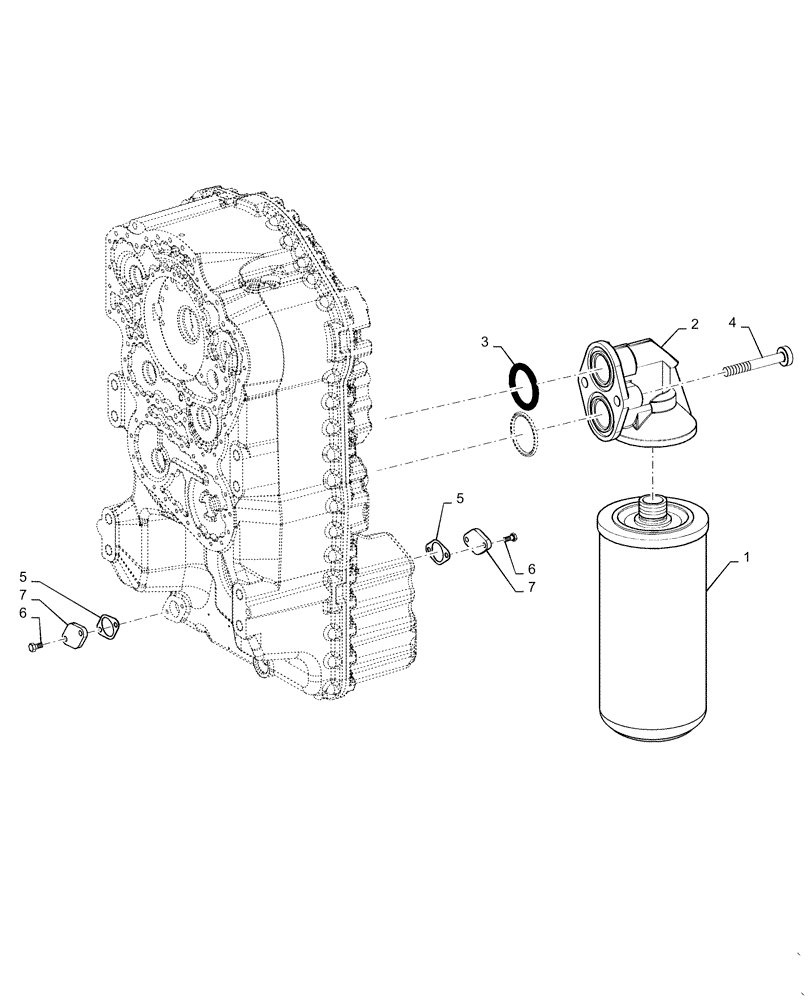

Схема запчастей Case 721F - (21.105.BC) - TRANSMISSION OIL FILTER AND FILLER COVERS (21) - TRANSMISSION
7
7
3
1
6
6
5
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87519452

HYDRAULIC OIL FILTER

Transmission

1шт.

2

8603403

FILTER HEAD

Transmission

1шт.

3

87712670

O-RING

Filter Head to Tranmission Housing

2шт.

4

8603311

SCREW

Filter Head Mounting

2шт.

5

8603396

BOLT,Hex, M8 x 18mm

4шт.

6

8603217

COVER

Transmission Oil Fill Port

2шт.

7

8603281

GASKET

Fill Port Cover

2шт.
