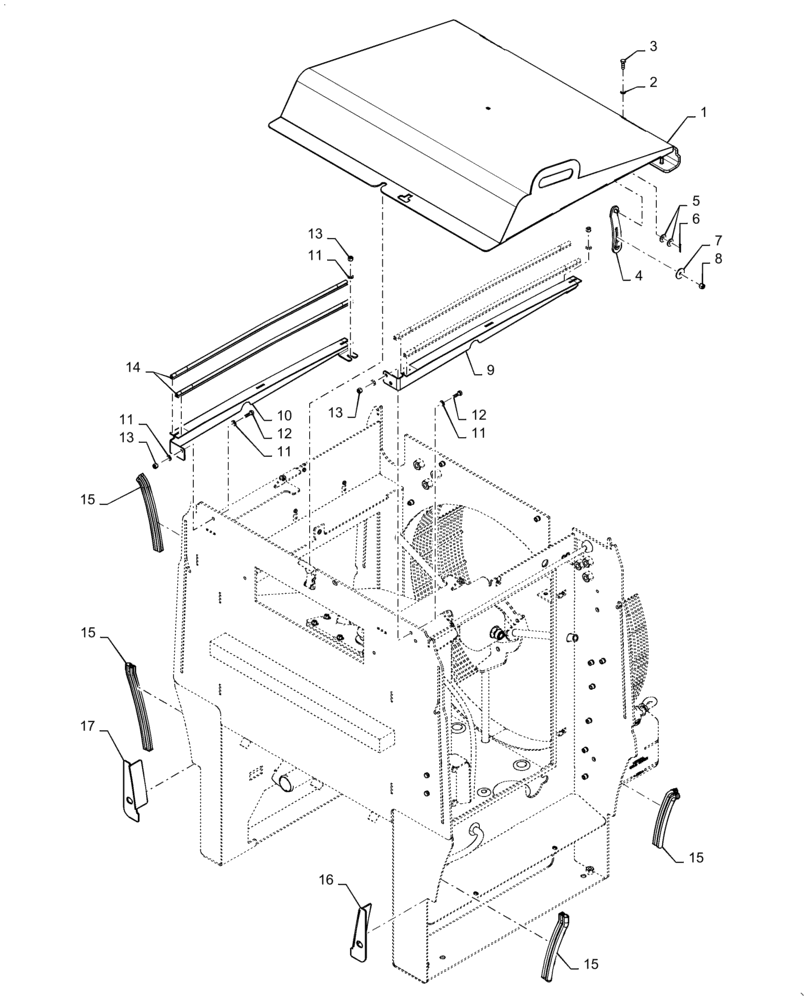

Запчасти Case 721F (10.400.BD[01]) - COOLER TOP SCREEN INSTALLATION, HEAVY DUTY (10) - ENGINE

1

84128657

SCREEN

Top HD Cooler

1шт.

2

892-11008

LOCK WASHER,8mm ID

3шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

4

84170851

LOCKING BAR

W/Prop, Two Position

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

6

733-3220

COTTER PIN,M3.2 x 20

1шт.

7

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

8

832-10406

NUT,M6 x 1, Cl 8

1шт.

9

84128648

BEAM

WD, LH, Seal

1шт.

10

84128659

BEAM

WD, RH, Seal

1шт.

11

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

10шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

14

47809694

SEAL

Cooling Frame

4шт.

15

84128692

SEAL

Fan Shroud

4шт.

16

84128684

BRACKET

LH, Wheel Well

1шт.

17

84128681

BRACKET

RH, Wheel Well

1шт.
