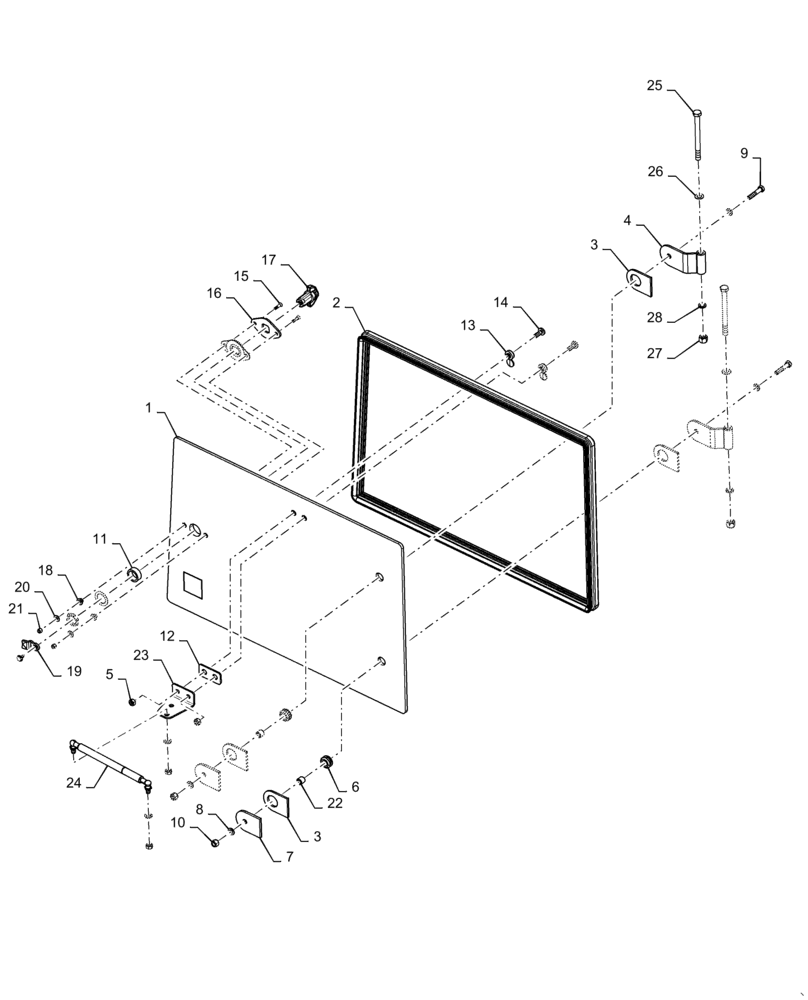

Запчасти Case 721F (90.154.AM[03]) - RIGHT LOWER WINDOW ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

76303460

CAB GLASS ASSY

Right Door

1шт.

2

76303240

DOOR SEAL

1шт.

3

76303193

GASKET,4mm Thk

Service Door Hinge

4шт.

4

87472961

HINGE

Right Door

2шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

6

4227144

GROMMET,M14 x 25.5 x 19.5

2шт.

7

76303192

PLATE

Hinge

2шт.

8

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

87628362

SPACER,22.5mm ID x 29.5mm OD x 11mm L

1шт.

12

76303461

GASKET,3mm Thk

1шт.

13

87537993

CAP

M8 Bolt Cover

2шт.

14

840-1820

SCREW,Pan, M8 x 20mm, Cl 4.8

2шт.

15

13311214

SCREW,Pozidriv Oval Hd, Csk, M5 x 20mm, Cl 5.8, Full Thd

2шт.

16

87628364

PLATE

Latch Mount

1шт.

17

87628359

LATCH

Door

1шт.

18

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

Plastic

2шт.

19

87723154

PAWL

Door Latch

1шт.

20

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

2шт.

21

832-10405

NUT,M5 x .8, Cl 8

2шт.

22

87722494

SPACER,8.5mm ID x 14mm OD x 12mm L

12mm

2шт.

23

47411267

BRACKET

Service Door

1шт.

24

84359528

GAS STRUT

1шт.

25

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

26

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

2шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

28

86547919

WASHER,10.3mm ID x 16.1mm OD x 2.1mm Thk

Brass

2шт.
