Запчасти Case 721F (90.151.AK[01]) - EXTERNAL REARVIEW MIRROR, HEATED (90) - PLATFORM, CAB, BODYWORK AND DECALS

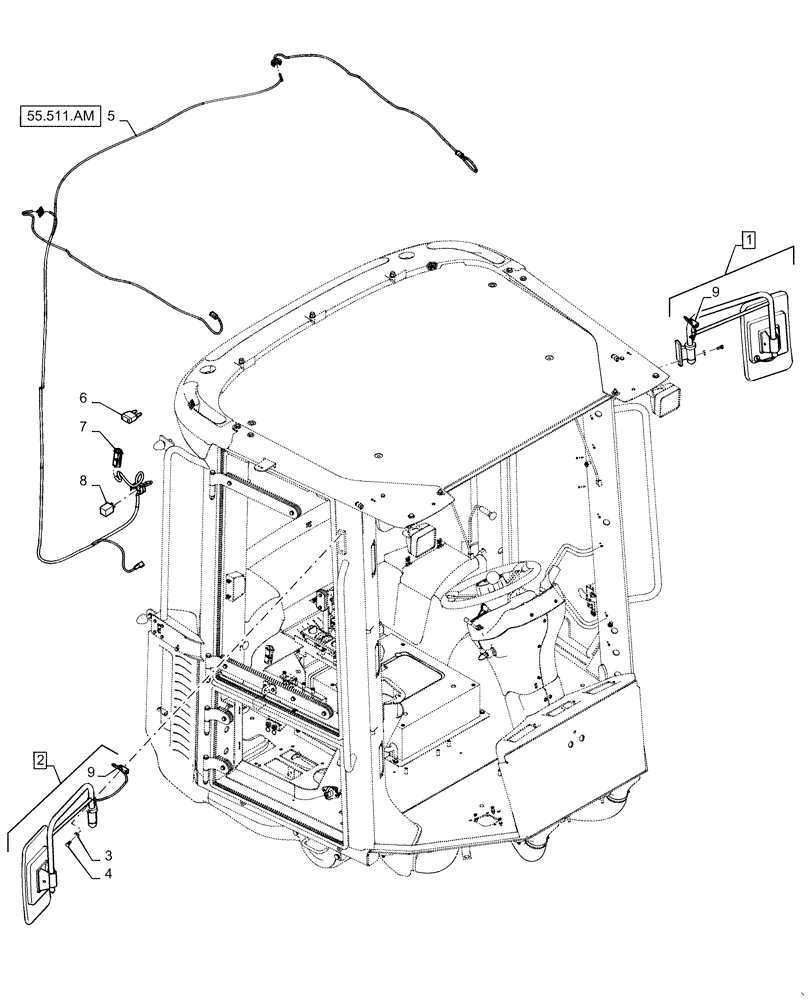

Схема запчастей Case 721F - (90.151.AK[01]) - EXTERNAL REARVIEW MIRROR, HEATED (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.511.am
2
3
9
1
4
5
7
8
6
9

Артикул

Название

Примечание

Количество

1

84494319

LH MIRROR

Assy, Left, Incl 9

1шт.

2

84494318

RH MIRROR

Assy, Right, Incl 9

1шт.

3

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

84494902

WIRE HARNESS

Cab Mirror

1шт.

6

121411A1

FUSE,7.5A, Mini, Brown

1шт.

7

84490718

MIRROR HEAT SWITCH

Heated Mirror

1шт.

8

84515582

RELAY

Time Delay 10 Min, 24V

1шт.

9

225315C1

ELEC CONNECTOR,Male, 2 Pin

2шт.

Выбрано товаров: 9
