Запчасти Case 721F (90.150.AE) - CAB MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

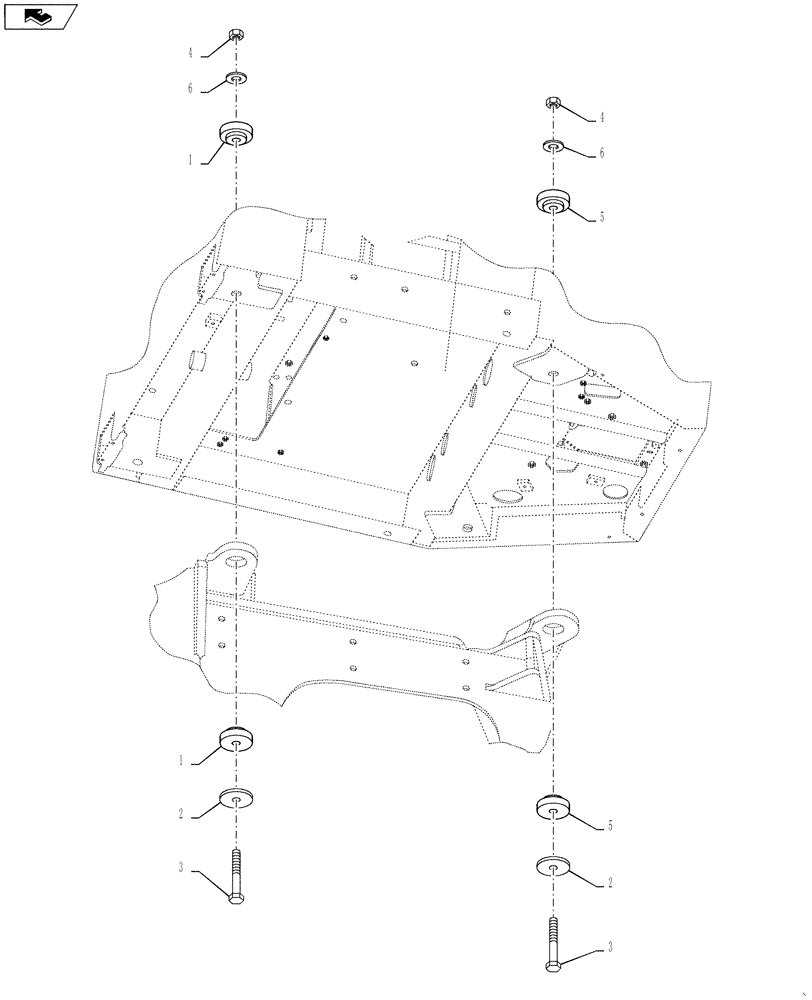

Схема запчастей Case 721F - (90.150.AE) - CAB MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
3
6
1
4
6
2
1
2
4
5
3

Артикул

Название

Примечание

Количество

1

358981A1

RUBBER MOUNTING

Rear Support

4шт.

2

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

4шт.

3

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

4

329-1014

NUT,7/8"-9, G8

4шт.

5

358982A1

RUBBER MOUNTING

Front Support

4шт.

6

396-41094

WASHER,23.82mm ID x 57.15mm OD x 5.56mm Thk

4шт.

Выбрано товаров: 6
