Запчасти Case 721F (90.120.AD[02]) - SEAT, MECHANICAL SUSPENSION, VINYL (90) - PLATFORM, CAB, BODYWORK AND DECALS

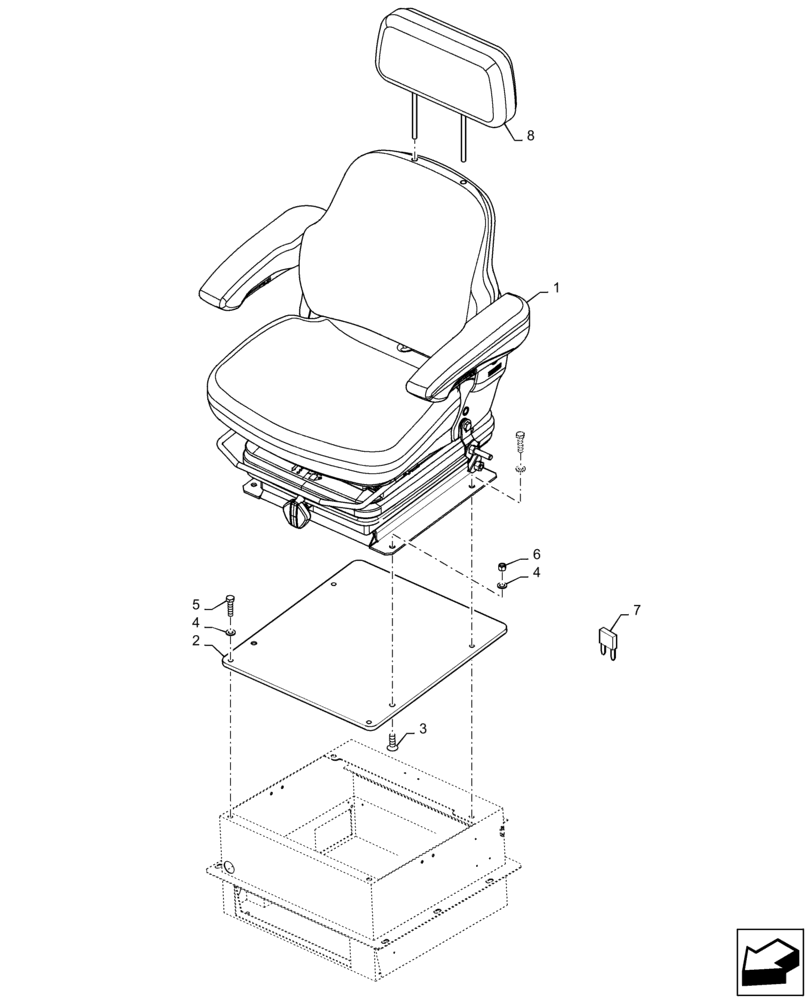

Схема запчастей Case 721F - (90.120.AD[02]) - SEAT, MECHANICAL SUSPENSION, VINYL (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
4
8
4
3
5
1
2
7

Артикул

Название

Примечание

Количество

1

399261A1

DRIVER SEAT

Vinyl Used with Canopy and Cab

1шт.

1

84160907

SEAT

Cloth Used with Mechanical Seat

1шт.

1

84273518

SEAT

Cloth Used with Air Suspention

1шт.

2

84132813

PLATE

Spacer Used with Vinyl Seat Only

1шт.

3

906037R1

HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

5

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

7

121413A1

FUSE,15A, Mini, Blue

Used with Air Ride Seats

1шт.

8

47471286

SEAT HEADREST

Universal

1шт.

Выбрано товаров: 10
