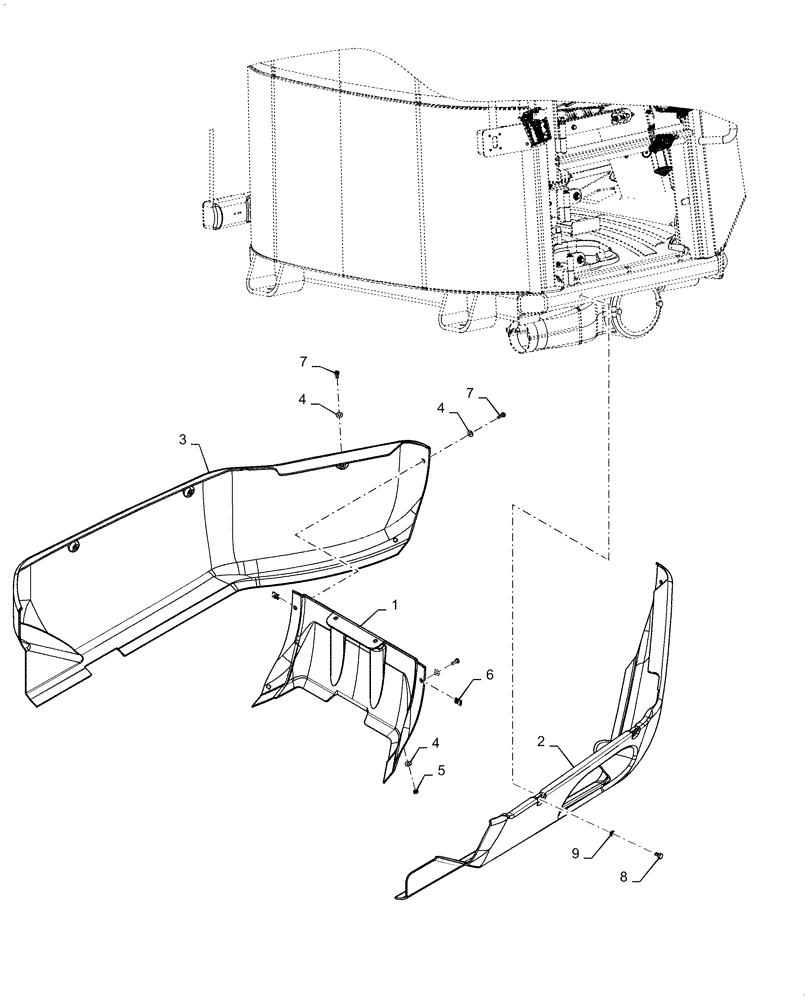

Запчасти Case 721F (90.116.BE[02]) - SKIRT, CAB AND CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87389203

PLASTIC

Skirt, Front, CE Gray

1шт.

2

87389200

PLASTIC

Skirt, RH, CE Gray

1шт.

3

87389197

PLASTIC

Skirt, LH, CE Gray

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

6

84346910

SPRING NUT,M8

4шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

Uniball

6шт.

8

87547661

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

4шт.

9

432444A1

SPACER

Retaining

4шт.
