Запчасти Case 721F (90.108.AC[06]) - DECALS COMMON TO MODEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

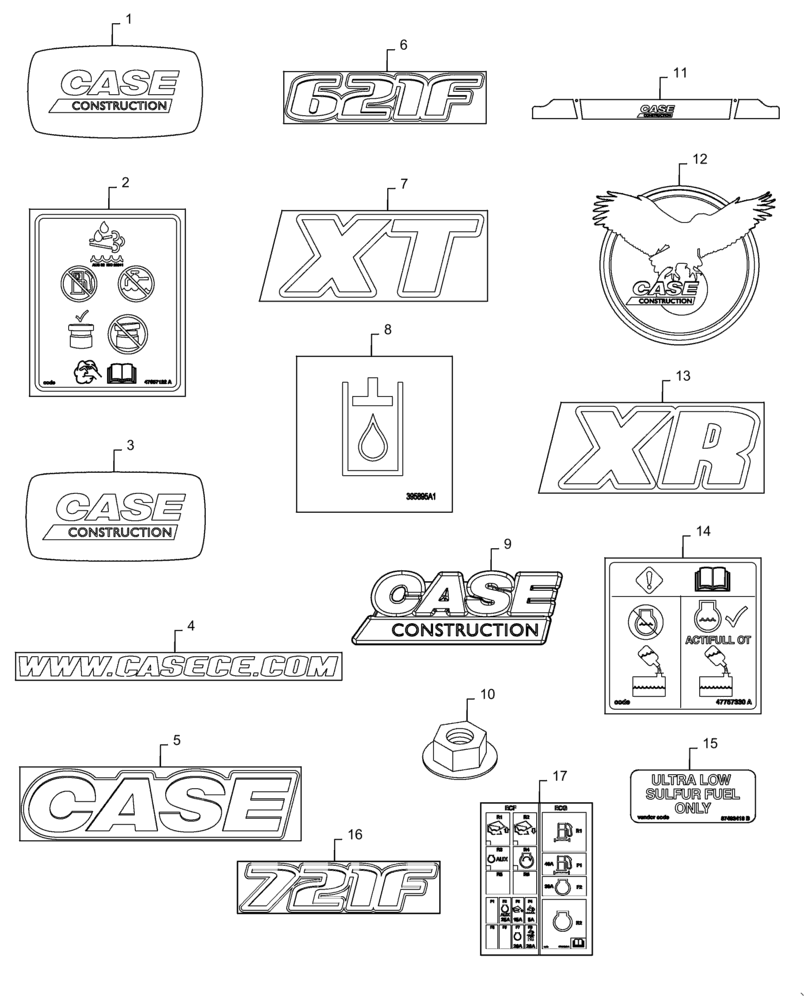

Схема запчастей Case 721F - (90.108.AC[06]) - DECALS COMMON TO MODEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
1
5
11
2
14
4
3
16
10
17
13
7
6
9
12
8

Артикул

Название

Примечание

Количество

1

84558035

DECAL,70mm x 58mm H

Engine

3шт.

2

47657122

DECAL

DEF

1шт.

3

84558036

DECAL,66mm x 33mm H

Engine Madallion

1шт.

4

84468361

DECAL,436mm x 27mm H

Case.Com 475mm

1шт.

5

84494304

DECAL

Case Logo

2шт.

6

84604899

DECAL

621F

2шт.

7

84494302

DECAL

XT, Use W/ XT Models

2шт.

8

395895A1

DECAL

Hyd, Oil

1шт.

9

84478049

EMBLEM

Case Logo, For Mounting Hardware Order Ref. 10

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Use W/ Ref. 9

2шт.

11

84489975

DECAL

Cab Visor

1шт.

12

84468362

DECAL,194mm x 170mm H

Eagle

2шт.

13

84489976

DECAL

XR Decal, Use W/ XR Models

2шт.

14

47757330

DECAL,50mm x 50mm H

Coolant, Actifull OT

2шт.

15

87493418

DECAL,50mm x 21mm H

Ultra Low Sulpher Fuel

1шт.

16

84604902

DECAL

721F

2шт.

17

47606923

DECAL

Fuse and Relay Chart , Serial Range: -NFF232958

1шт.

17

47822960

DECAL

Fuse and Relay Chart , Start Serial: NFF232959

1шт.

Выбрано товаров: 18
