Запчасти Case 721F (90.108.AC[03]) - DECALS, ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS

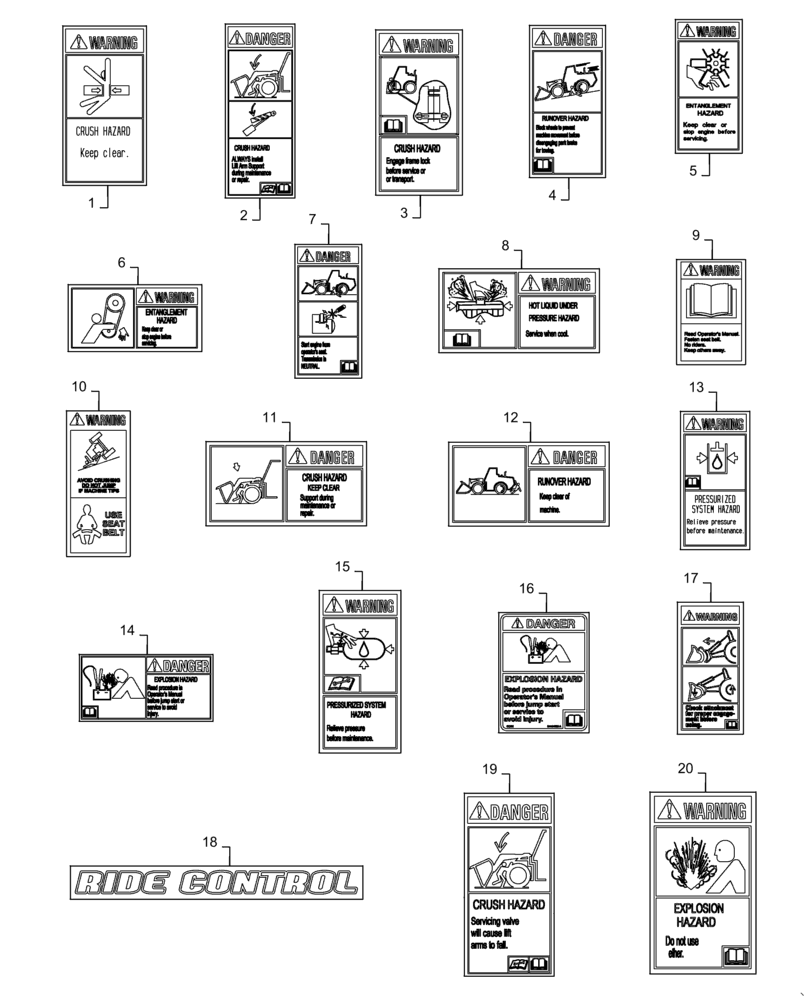

Схема запчастей Case 721F - (90.108.AC[03]) - DECALS, ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS
16
17
20
5
11
19
18
12
9
6
4
3
7
14
15
13
10
8
1
2

Артикул

Название

Примечание

Количество

1

323694A1

DECAL

Crush Hazard

2шт.

2

407737A2

DECAL

Lift Arm Support

1шт.

3

329047A1

DECAL

Caution Trans/Serv

1шт.

4

329049A1

DECAL

Caution Block Wheels

1шт.

5

87488606

DECAL

Fan Warning

3шт.

6

388112A1

DECAL

Belt Entaglement Hazard

1шт.

7

87488616

DECAL

Danger Starting

1шт.

8

329044A1

WARNING DECAL,168mm x 88mm H

Fluid Under Pressure

1шт.

9

382622A1

DECAL,60mm x 90mm H

General Warning

1шт.

10

321-7030

WARNING DECAL

Do Not Jump

1шт.

11

328754A1

DANGER DECAL

Danger Crush Hazard

1шт.

12

328752A1

DECAL

Warning Hazard

1шт.

13

335889A1

DECAL

Pressurized System Hazard

3шт.

14

412471A1

DECAL

Danger Explosion Hazard

1шт.

15

87586617

DECAL

Fluid Under Presure

1шт.

16

84404558

DANGER DECAL

Explosion Hazard

1шт.

17

364742A1

DECAL

Attachment Test, Use If Coupler Or Hyd Lock Installed

1шт.

18

84493112

DECAL

Ride Control, Use If Installed On Machine

2шт.

19

87453132

DECAL

Danger, Crush Hazard, Use Only If Ride Control Installed

2шт.

20

8603092

WARNING DECAL,55mm x 95mm H

Warning, Ether Explosion, Use Only If Grid Heater Installed

1шт.

Выбрано товаров: 20
