Запчасти Case 721F (90.108.AC[01]) - DECALS, SPANISH (90) - PLATFORM, CAB, BODYWORK AND DECALS

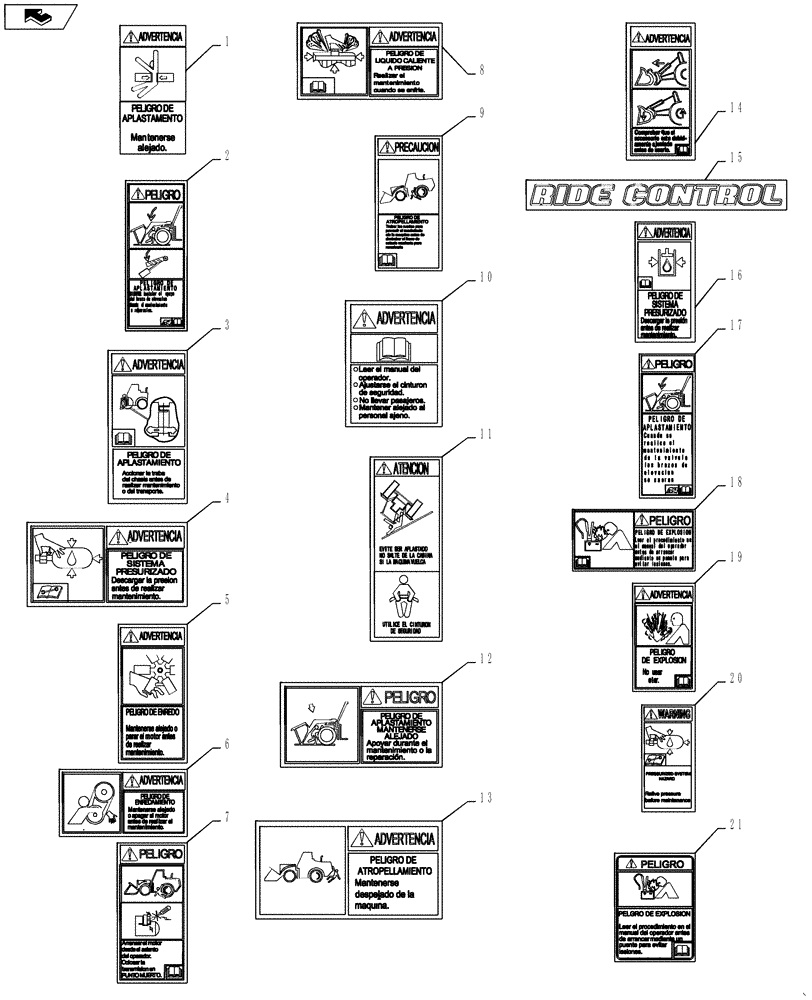

Схема запчастей Case 721F - (90.108.AC[01]) - DECALS, SPANISH (90) - PLATFORM, CAB, BODYWORK AND DECALS
17
18
20
12
15
3
4
10
8
5
16
14
2
9
13
21
19
7
6
1
11

Артикул

Название

Примечание

Количество

1

334576A1

DECAL

Warning, Crush Hazard

2шт.

2

407739A2

DECAL

Lift Arm Support

1шт.

3

334573A1

DECAL

Caution Trans/Serv

1шт.

4

334015A1

DECAL

Fluid Under Presure

1шт.

5

87488608

DECAL

Fan Warning

3шт.

6

388158A1

DECAL

Belt Entanglement Hazards

1шт.

7

87488618

DECAL

Danger Starting

1шт.

8

334664A1

DECAL

Fluid Under Presure

1шт.

9

334704A1

DECAL

Caution Block Wheels

1шт.

10

334000A2

DECAL

General Warning

1шт.

11

124271A1

DECAL

Do Not Jump

1шт.

12

334677A1

DECAL

Danger Crush Hazard

1шт.

13

334688A1

DECAL

Warning Hazard

1шт.

14

364918A1

DECAL

Attachment Test

1шт.

15

84493112

DECAL

Ride Control Case Only

1шт.

16

336011A1

DECAL

Pressurized System Hazard

3шт.

17

87453134

DECAL

Danger Crush Hazard

1шт.

18

412474A1

DECAL

Danger Explosion Hazard

1шт.

19

8603094

WARNING DECAL

Either Explosion

1шт.

20

87597329

DECAL

Fluid Under Pressure, Not Used on 721F Models

1шт.

21

84404561

DANGER DECAL

Explosion Hazard

1шт.

Выбрано товаров: 21
