Запчасти Case 721F (90.105.BZ) - BATTERY AND SCR COVER ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

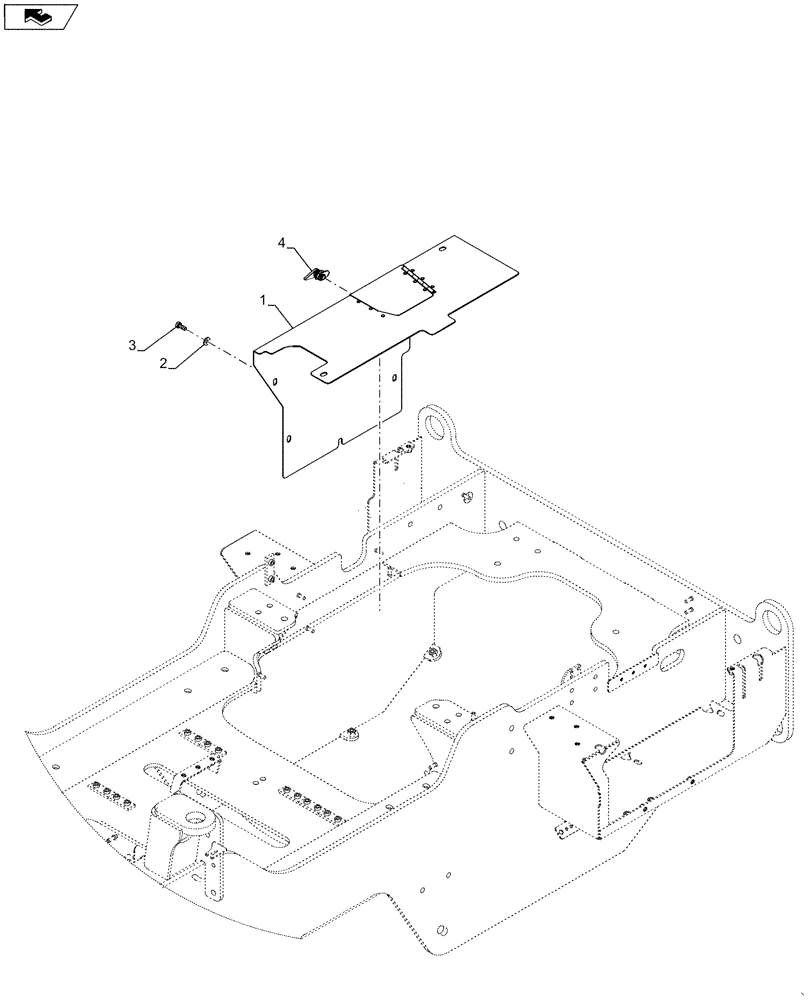

Схема запчастей Case 721F - (90.105.BZ) - BATTERY AND SCR COVER ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
3
2
4

Артикул

Название

Примечание

Количество

1

47441514

COVER

RH, SCR Tank Assy

1шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

4

8602791

LOCK

Control Access

1шт.

Выбрано товаров: 4
