Запчасти Case 721F (90.100.AU[05]) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

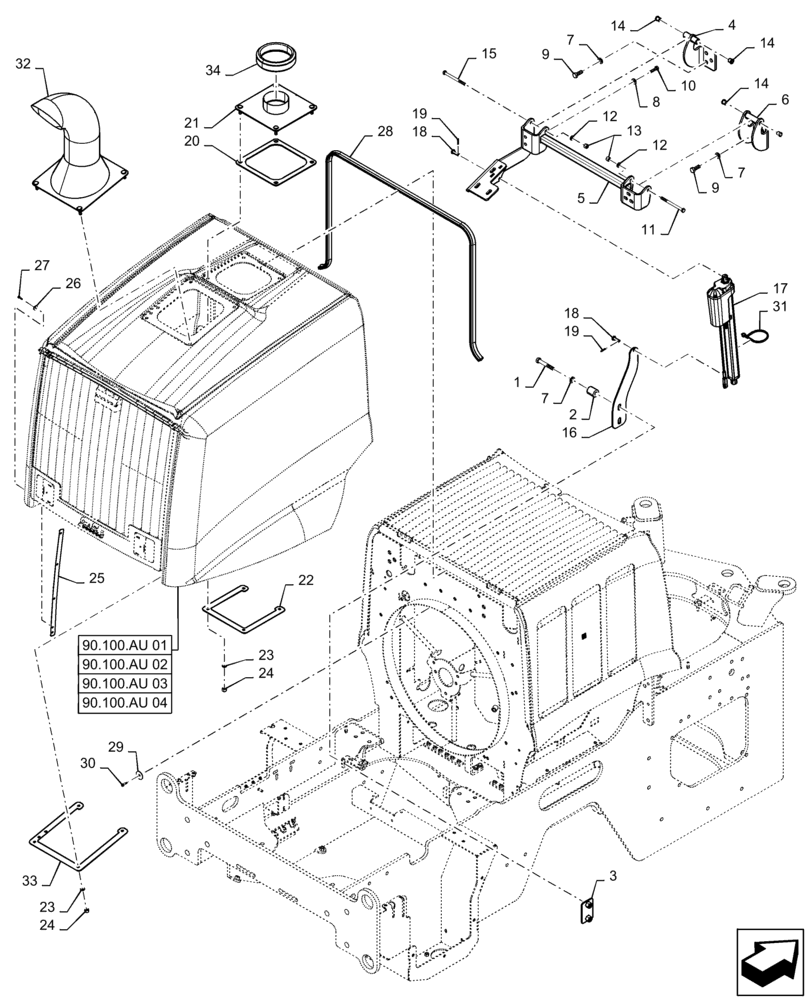

Схема запчастей Case 721F - (90.100.AU[05]) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
32
9
33
9
16
19
90.100.au 02
1
25
11
13
90.100.au 01
26
7
23
12
14
31
15
19
12
24
27
22
28
20
2
21
5
6
18
14
8
90.100.au 04
14
90.100.au 03
34
29
10
30
7
24
3
7
23
4
18
17

Артикул

Название

Примечание

Количество

1

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

2

47772550

SPACER,16.5mm ID x 38mm OD x 43.75mm L

2шт.

3

47386214

ANCHOR

Jack Base

1шт.

4

47425352

HINGE

LH, Hood Mount, CNH Black

1шт.

5

47488710

HINGE

Hood Mount, CNH Black

1шт.

6

47488716

HINGE

RH, Hood Mount, CNH Black

1шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

7шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

9

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

5шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

11

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

1шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

14

382495A1

BUSHING

Flange

4шт.

15

827-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 10.9

1шт.

16

47770602

SUPPORT

Hood Strut

1шт.

17

47429542

ACTUATOR

Hood Panel Bracket

1шт.

18

728-1240

CLEVIS PIN,M12 x 40

2шт.

19

733-3220

COTTER PIN,M3.2 x 20

2шт.

20

47417284

SEAL

Hood, Intake Plate

1шт.

21

47399166

PIPE

Intake Top

1шт.

22

8500382

PLATE

Intake Backing

1шт.

23

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

25

47490881

PLATE

Grill Backing

2шт.

26

892-11006

LOCK WASHER,M6

8шт.

27

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

8шт.

28

47417660

SEAL

Bulb

1шт.

29

495-81144

WASHER,0.41" ID x 1.75" OD x 0.06" Thk

6шт.

30

87632741

STEP BOLT,M8 x 16mm, Cl 12.9

6шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

32

47417626

EXHAUST SYSTEM PIPE

Rear Hood, Upper

1шт.

33

47397265

PLATE

Exhaust Backing

1шт.

34

8500403

SEAL

Air Cleaner

1шт.

Выбрано товаров: 34
