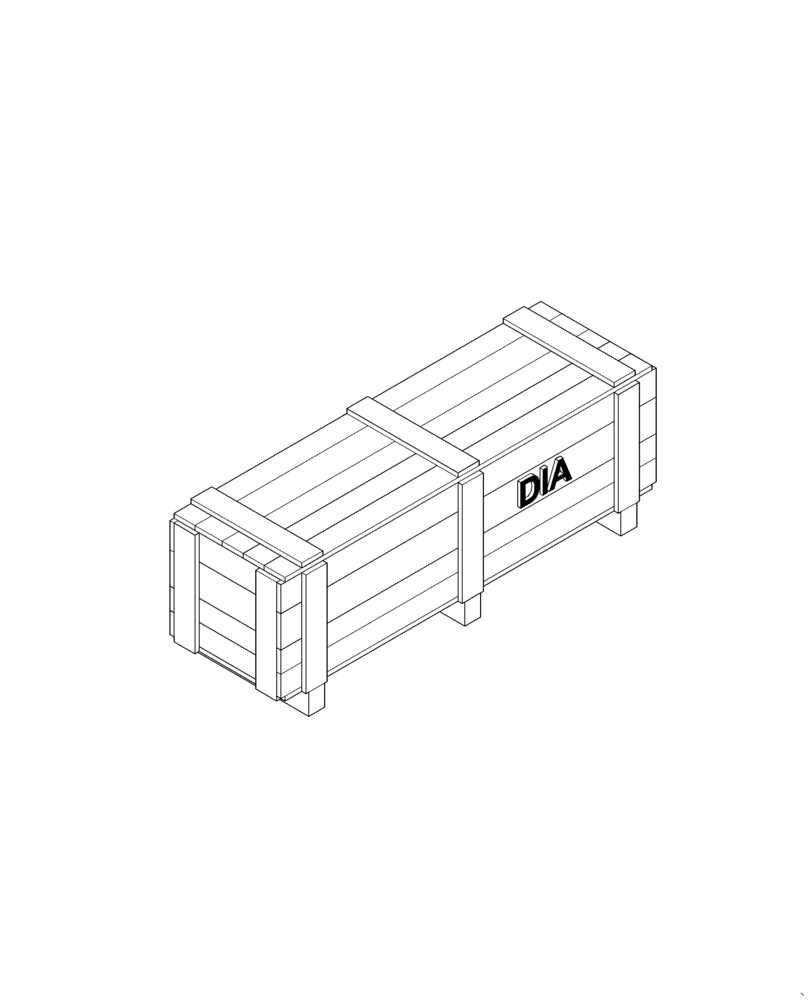

Запчасти Case 721F (88.100.90[03]) - DIA KIT SKID AND FUEL TANK GUARDS (88) - ACCESSORIES

1

47661290

KIT

Kit Includes 2 - 28

1шт.

2

47661291

INSTRUCTION

1шт.

3

47407556

GUARD

Assembly, Belly LH

1шт.

4

47407540

PLATE

Front Skid

1шт.

5

47407545

GUARD

Assembly, Belly RH

1шт.

6

47400206

GUARD

Access

2шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

29шт.

8

892-11012

LOCK WASHER,M12

33шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

29шт.

10

47407558

PLATE

Trans Skid

1шт.

11

84370857

SKID PLATE

1шт.

12

87593947

BRACKET

Skid Plate

2шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

14

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

16

895-15012

WASHER,M12 x 28 x 2.5

4шт.

17

496-81022

WASHER

.656" ID x 1.25" OD

2шт.

18

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

19

372947A1

SPACER

12.8 mm ID x 25.4" OD x 15.6 mm Lg

2шт.

20

892-11008

LOCK WASHER,8mm ID

4шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

22

47382614

GUARD

Rear Belly

1шт.

23

47382618

GUARD

Fuel Tank

1шт.

24

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

25

47407577

CLAMP

Bracket, Weldnut

4шт.

26

87318127

CLAMP

Bracket, Weldnut

2шт.

27

830-62012

NUT

Heavy Weld, M12

6шт.

28

360476A1

BRACKET

Weldnut

4шт.
