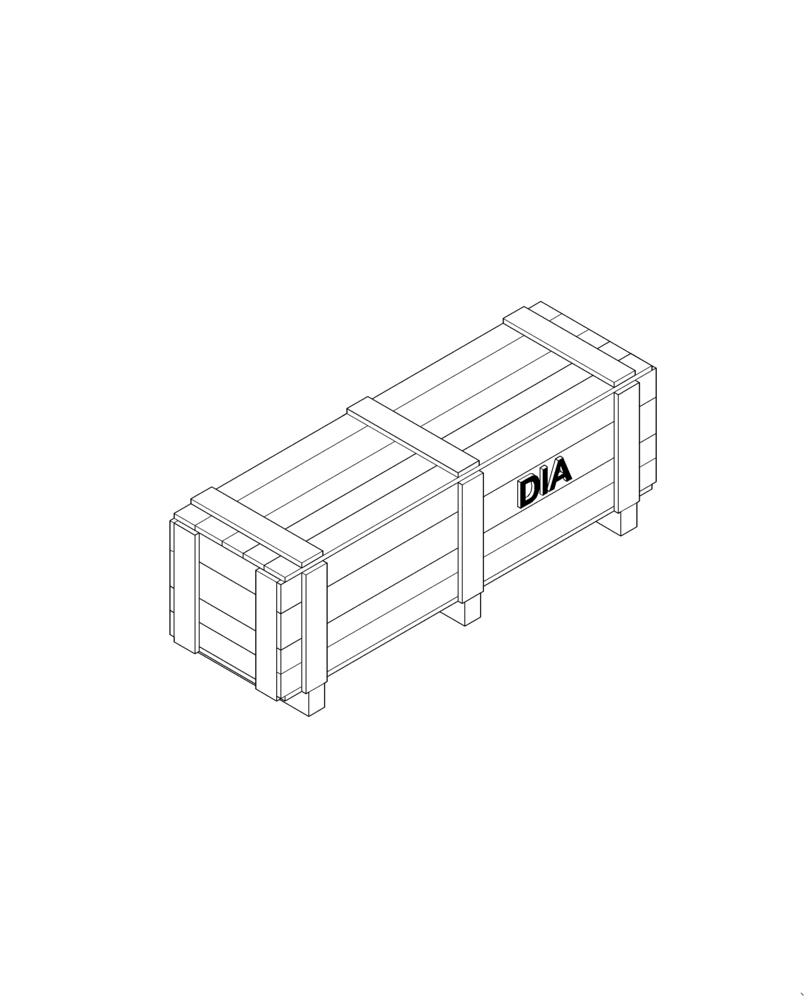

Запчасти Case 721F (88.100.90[02]) - DIA KIT SKID PLATE (88) - ACCESSORIES

1

84532686

SERVICE KIT

Kit Includes 2 - 16

1шт.

2

84532688

INSTRUCTION

1шт.

3

87593940

SKID PLATE

1шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

7шт.

5

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

7шт.

6

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

7шт.

7

84370857

SKID PLATE

1шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

9

86639209

BOLT,M8 x 1.25 x 40.45mm, Cl 10.9

8шт.

10

87593947

BRACKET

Skid Plate

2шт.

11

86528579

NUT,M8 x 1.25

4шт.

12

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

13

190003888452

LOCK NUT,M10, Class 8

2шт.

14

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

15

372947A1

SPACER

Bracket

2шт.

16

86637955

WASHER,0.66" ID x 1.25" OD x 0.24" Thk

2шт.
