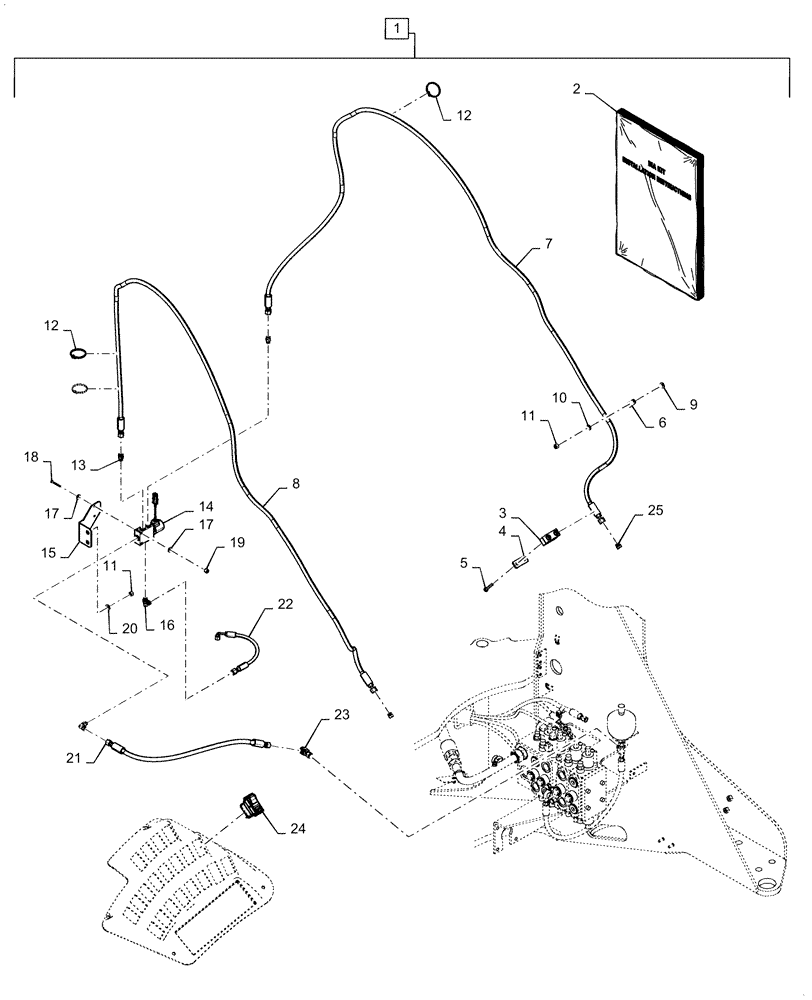

Запчасти Case 721F (88.100.35[05]) - DIA KIT LOCKING HYDRAULICS XT (88) - ACCESSORIES

1

47616874

KIT

DIA Kit Locking Hydraulics XT, Incl 2 - 25

1шт.

2

47616872

INSTRUCTION

Instruction Sheet

1шт.

3

379374A1

BLOCK

Tube

1шт.

4

367658A1

PLATE

Clamp Cover

1шт.

5

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

6

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

8шт.

7

87437170

FLEXIBLE HOSE

Coupler Left

4шт.

8

87437075

FLEXIBLE HOSE

Coupler Right

2шт.

9

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

Strap

1шт.

13

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

14

84139102

SOLENOID VALVE

8шт.

15

442303A1

BRACKET

1шт.

16

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

17

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

18

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

19

832-10406

NUT,M6 x 1, Cl 8

8шт.

20

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

21

8500756

FLEXIBLE HOSE

Coupler Pressure

4шт.

22

8500757

FLEXIBLE HOSE

Coupler Return

6шт.

23

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

6шт.

24

364444A2

SWITCH

Rocker

1шт.

25

701-911

PLUG,Hex, 11/16" - 16 ORFS

2шт.
