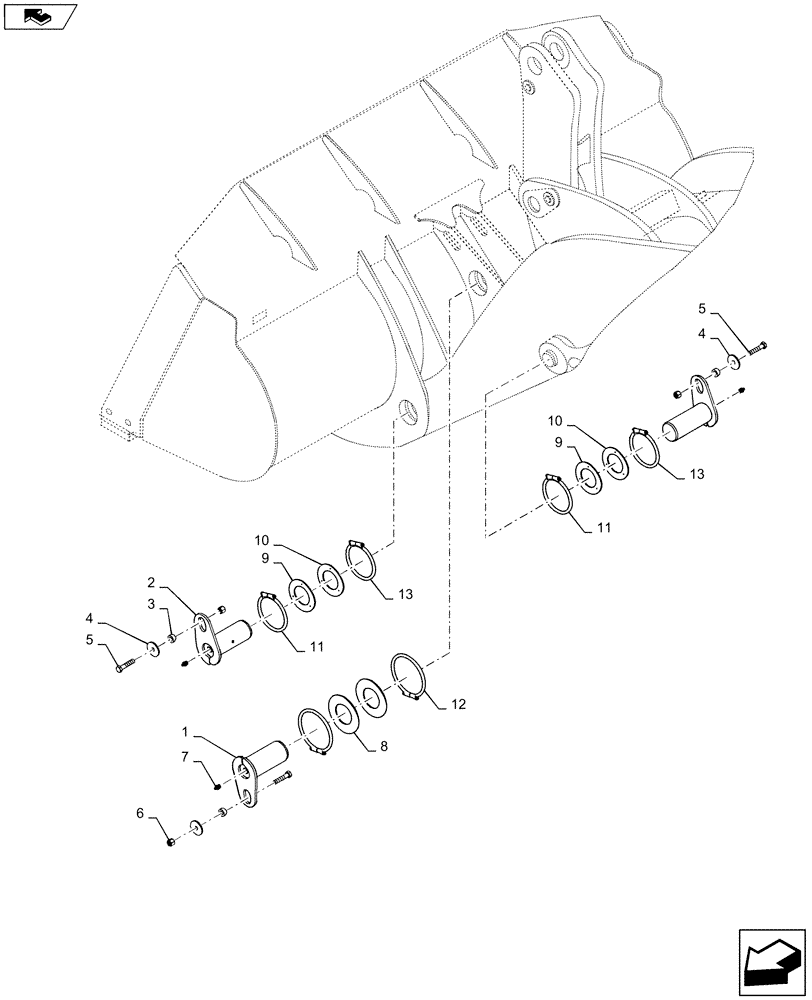

Запчасти Case 721F (82.300.AY) - BUCKET ATTACHMENT, Z-BAR & XR (82) - FRONT LOADER & BUCKET

1

87426761

PIN

Dump Link

1шт.

2

87426758

PIN

Dump Link

2шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

3шт.

4

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

3шт.

5

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

3шт.

6

832-10416

NUT,M16 x 2, Cl 8

3шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

8

87642053

WASHER,91mm ID x 170mm OD x 3.5mm Thk

Hardened 91 ID, 3.5 THK

2шт.

9

87373120

SHIM,83mm ID x 142mm OD x 3.8mm Thk

83.9 ID, 3.5 THK

1шт.

10

87373119

SHIM,83.9mm ID x 142mm OD x 2.5mm Thk

83.9 ID, 2.5 THK

1шт.

11

87373118

SHIM,83.9mm ID x 142mm OD x 1.8mm Thk

83.9 ID, 1.6 THK

1шт.

12

87309174

O-RING,167mm ID

167mm ID

2шт.

13

87362492

O-RING,140mm ID x 164mm OD x 12mm Thk

140MM ID

4шт.
