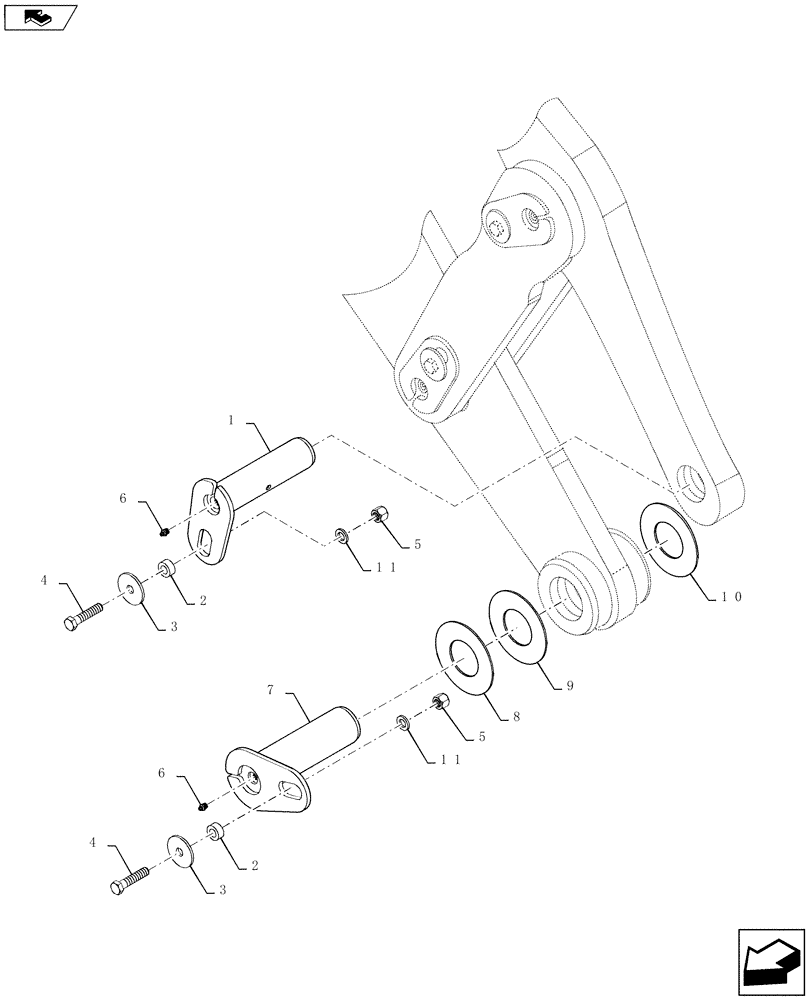

Запчасти Case 721F (82.300.AY[01]) - BUCKET ATTACHMENT, XT/TC (82) - FRONT LOADER & BUCKET

1

84315936

PIN

Lift Arm Pivot

2шт.

2

76086827

SPACER

Plated

4шт.

3

87032338

WASHER,0.66" ID x 2.5" OD x 0.19" Thk

4шт.

4

86577946

BOLT,Hex, M16 x 80mm x 10.9

4шт.

5

412066

NUT,M16 x 2.0, Cl 8

4шт.

6

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

7

87305040

HEADED PIN,76.2mm OD x 258mm L

Lift Arm

2шт.

8

76082536

WASHER,77.6mm ID x 155mm OD x 3.5mm Thk

Hardened 77.6 ID; 3.5 THK

1шт.

9

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

Hardened 77.6 ID; 2.5 THK

1шт.

10

8605821

WASHER,77.6mm ID x 155mm OD x 1.6mm Thk

Hardened 77.6 ID; 1.6 THK

1шт.

11

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.
